Install

``bash
npm i -D @d-cat/tag-cli
`

Usage

@d-cat/tag-cli is a toolkit to deploy and develop a Tag Manager with Tags using GitLab and Google Cloud Platform.
___

Tag Manager commands

---
A D-CAT Tag Manager is a collective name for all layers that work together to generate and deploy a working JavaScript bundle of multiple GitLab repositories of a single GitLab Group in a defined Google Cloud Storage Bucket. To effectuate this, we depend on the following:

* @d-cat/tag-manager;
* @d-cat/tag-cli;
* @d-cat/ddm-core
* GitLab Group;
* GitLab Group API;
* GitLab Tag Manager Repository in a GitLab Group;
* More than 0 GitLab Tag Repositories (generated through @d-cat/tag-cli) in a GitLab Group;

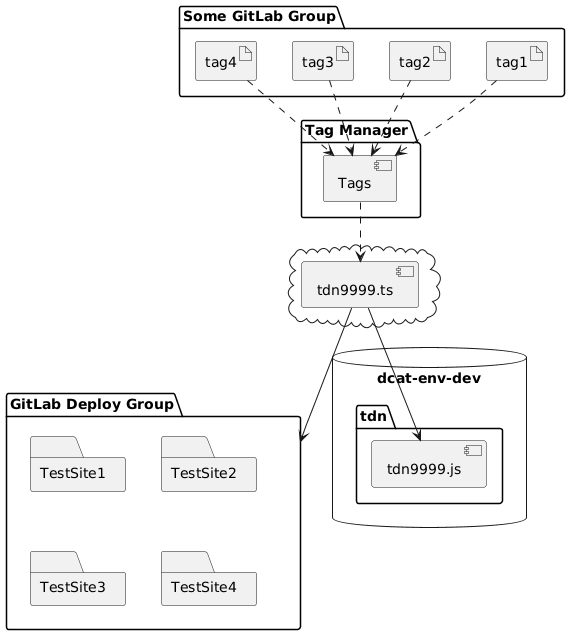

!bundle-tag-manager

---

$3

The create-tag-manager creates a Tag Manager boilerplate designed to use with @d-cat/tag-cli within GitLab CI/CD. Please make sure you update the e2e and unit tests to suite your needs and match the TMS you want to deploy.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--force Create Tag Manager without prompt [boolean]
`

`bash


creates default setup

npx tag-cli create-tag-manager --force

prompt questions

npx tag-cli create-tag-manager --no-force
`

#### What's included
The Tag Manager boilerplate contains everything to:
* unit test the build version of the tag manager
* e2e test the build version of the tag manager in chrome headless browser
* deploy test/prod containers in a GCP bucket
* deploy testable open websites with the TMS running on it for functional testing
* dockerized TMS to run the TMS locally in isolation
* dockerized TMS that registers images in GitLab private registery
* stable pipeline file with artifacts enabled both on success as failure
* babel/ts for browser compatibility

Some parts of the generated boilerplate can look weird as the pipeline will interpolate varialbes/files/libs and build the full version when running npx tag-cli bundle-tag-manager.

> The roadmap is to replace interpolated files with a configuration (json/yml) file to make it more intuitive.

#### Update depedencies
By default dependencies are fixed in the package-lock.json and package.json files. Updating a package manually will break the pipeline as it runs npm ci, thus you have to update both package.json as package-lock.json:

`bash
npm i yourpackage@1.0.0
`

#### Examples
Make sure docker is installed and you've updated your .env file.

`bash


create a new tag folder

mkdir myTag

cd myTag

creating a tag manager boilerplate

npx tag-cli create-tag-manager

running a tag manager locally in isolation on localhost:8080

docker build -t ${img_name} .
docker run --name ${container_name} --rm -p 8080:8080 -ti ${img_name}:latest

running a tag manager locally in isolation with docker-compose

docker-compose build bundle
docker-compose up bundle

running the full tms pipeline (except deployment in gcp/test sites) locally in isolation

docker-compose build deploy
docker-compose up deploy
`

#### GitLab configuration
Make sure you did all necessary steps to start with GitLab.

- Create a new GitLab (sub)group with name as Container ID: (i.e. 9999);
- Create a new project, called Tag Manager;
- Create CI/CD variables.

##### CI/CD variables to create in GitLab

Before you run the pipeline, make sure you create the necessary CI/CD variables in the GitLab TMS Group.

| CI/CD variable | Type | Description |
| ----------------------- | :------: | :--------------------------------------------------------------------------------------------------------- |
| PERSONAL_ACCESS_TOKEN | variable | Your personal access token, that has owner rights of the tags group. |
| CONTAINER_ID | variable | Group ID that should be queried for tags. |
| GCLOUD_SERVICE_KEY | file | Your authentication file for Google Cloud. |
| SSH_KEY | file | Your SSH key to clone and push repo's of GitLab. |
| GIT_USER_EMAIL | variable | Your git email: git config user.email. |
| GIT_USER_NAME | variable | Your git user name: git config user.name. |

---

$3


The bundle-tag-manager command bundles all tag artifacts to eventually transpile and deploy a Tag Manager.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--access-token, --token The GitLab personal accesstoken with owner rights. [string]
--group-id, --id The GitLab Group ID that should be analyzed. [number]
--dir-name, --dir Dir where to store artifacts. [string]
--branch-name, --branch The current branch. [string]
--job-token, --j Unique token: $CI_PIPELINE_ID. [string]
--environment --e Either development or production. [string]
`

#### Examples
Note that all flags are either mandatory or are set as a node environment variable.

`bash


the environment variable should be used to trigger

the tag managers pipeline from another pipeline or API

more at: https://docs.gitlab.com/ee/ci/triggers/#making-use-of-trigger-variables

gitlab variables to set as env variables

ACCESS_TOKEN=$MY_PERSONAL_ACCESS_TOKEN
GROUP_ID=$GITLAB_GROUP_ID

build a dev bundle

variables used are built-in gitlab env variables

note that we use ci_pipeline_id as job_token

this token is only used for e2e testing

npx tag-cli bundle-tag-manager --dir-name lib --branch-name $CI_COMMIT_REF_NAME --job-token $CI_PIPELINE_ID --environment $ENV_VAR_FROM_ANOTHER_PIPELINE
`

#### Test the bundle
Instead of running the pipeline from a shared runner in GitLab, you could also go for 2 other options to verify if the built is correct.

* install a GitLab runner locally and execute the bundle job from a Tag Manager project
* use Docker within a Tag Manager project:

`bash
docker build -t $MY_TMS_IMG .

serve the container on localhost:8080

docker run --name $MY_CONTAINER_NAME --rm -p 8080:8080 -ti $MY_TMS_IMG:latest

using docker-compose to only build the build job

docker-compose build build

serve the container on localhost:8080

docker-compose up build
`
---

$3

The deploy-test-instance command deploys a build version of the Tag Manager on a private or public website at https://instances.gitlab.io/[tagmanager_id]/[branchName]. It can take up to 10 minutes before your test instance is deployed, starting from your push.

Note that his commands looks up the tdn folder in the root directory of the repo and searches for the build file of the Tag Manager, typically something like tdn9999.js. The corresponding deploy url would be https://instances.gitlab.io/9999. The command is meant to run it right after a bundle stage.

> Note that you need access to the instances.gitlab.io group before you can publish to it.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--access-token, --token Personal accesstoken with enough rights. [string]
--group-id, --id The GitLab Group ID that should be analyzed [string]
--branch-name, --n The current branch name: $CI_COMMIT_REF_NAME. [string]
--job-token, --j $CI_JOB_TOKEN. [string]
`

#### Examples
`bash


Personal access token that's needed to authenticate

ACCESS_TOKEN=$PERSONAL_ACCESS_TOKEN

Job Token generated by GitLab so we can see in the

TMS interface that we triggered the pipeline of the instances group

JOB_TOKEN=$CI_JOB_TOKEN

The Group ID in which the TMS project is placed

GROUP_ID=$TMS_GROUP_ID

npx tag-cli deploy-test-instance --branch-name $CI_COMMIT_REF_NAME
`
---

$3

The deploy tag manager commands deploys the build tag manager to a Google Cloud Bucket and optionally sends a success email to a list of receivers.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--bucket-name, -b Name of the Google Cloud Bucket. [string]
--key-file-name, -k Google Cloud service key. [string]
--group-name, -i $CI_PROJECT_NAMESPACE. [string]
--branch-name, -n $CI_COMMIT_REF_NAME. [string]
--node-email, -gm Gmail email transporter. [string]
--node-pass, -pass Gmail password. [string]
--receivers, -list Receivers of mail. [string]
--is-empty -e If true deploy empty. [string]
`

#### Examples
Note that all flags are either mandatory or are set as an environment variable.

`bash


The bucket name of the Google Cloud Bucket

BUCKET_NAME=$MY_GCP_BUCKET_NAME

The Key file is your GCP IAM json.

make sure it has write rights to the

correct bucket only

KEY_FILE=$MY_KEY_FILE

The namespace of the gitlab group,

we use this to determine wether the TMS id

equals the namespace to prevent unexpected overrides

of a production container

so a GitLab Group called 9999

must contain a TMS repo with tdn9999.ts entrypoint.

GROUP_NAME=$CI_PROJECT_NAMESPACE

GitLab branch var

BRANCH_NAME=$CI_COMMIT_REF_NAME

gmail where we send the mail from

NODE_EMAIL=$EMAIL_ADDRESS_OF_SENDER

gmail pass

NODE_PASS=$EMAIL_PASS

string with spaces of receiver mails

RECEIVERS=foo.bar@gmail.com

You can deploy both an empty TMS (for initial release)

or a non-empty.

deploy empty TMS

npx tag-cli deploy-tag-manager --is-empty

deploy non-empty (default)

npx tag-cli deploy-tag-manager --no-is-empty
`
___

Tag Template Commands

---

A Tag Template functions as the backbone of a tag. It's a NPM package. It contains critical logic of handling tags logic and returns a class with a set of methods that we can use, inherit and override. Typically a Tag Template contains the following:

* it accepts an initializer object;
* it notifies the dataLayer that a Tag Template has been initialized;
* it's a class;
* it returns a render method;
* it's an NPM package, starting with: @d-cat/tag-template-;
* it publishes according NPM semver.

!tag-or-tag-template

---

$3

The deploy-tag-template command deploys a tag template on a NPM registery of choice. The package version is incremented based on the commits done through i.e. commitizen. Standard-version is used to publish either a major, minor or patch according to NPM's semver. A CHANGELOG.md is added or updatet within the repo. Please note that you should only use version 1.0.0 on a stable release. Using version 0.* will behave differently using NPM's semver.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--access-token, --token Personal accesstoken. [string]
--branch-name, --branch The current branch. [string]
--dist-dir, --d Dist dir. Default to lib. [string]
--is-flat-package NPM flatpackage publish. [boolean]
--project-path, --p $CI_PROJECT_PATH. [string]
--key, --k SSH Key. [string]
--user, -u Git username. [string]
--email, -e Git email. [string]
--o-auth-token, --oauth NPM authentication file. [object]
`

#### Examples
Note that all flags are either mandatory or are set as an environment variable.

`bash


Personal access token generated within gitlab

ACCESS_TOKEN=$MY_PERSONAL_ACCESS_TOKEN

SSH key is used to increment the version of the npm package

based on the commits done, according to commitizen.

standard-version is used to update a major, minor or patch and use

NPM's semver.

KEY=$SSH_KEY

your git user + email for authentication

GIT_USER=$GIT_USER_VAR
GIT_EMAIL=$GIT_EMAIL_VAR

deploy a flat package to a npm registery

dist dir is set to dist, thus the build is placed in dist

defined in your package.json

npx tag-cli deploy-tag-template --is-flat-package --dist-dir dist --branch-name $CI_COMMIT_REF_NAME --project-path $CI_PROJECT_PATH

deploy a standard npm package

npx tag-cli deploy-tag-template --no-is-flat-package --branch-name $CI_COMMIT_REF_NAME --project-path $CI_PROJECT_PATH
`

---

$3

If not using npm semver, you can use update-dependents to keep track of dependencies. The update-dependents command updates and triggers the first 1000 default branches of all GitLab projects that either use the current package as dependency or as devDependency, using the GitLab API. Please note when using npm ci this will not impact the package-lock.json and thus you have to update that one manually.

`bash


flags


Options:
--version Show version number [boolean]
--help Show help [boolean]
--access-token, --token Personal accesstoken. [string]
--dir-name, --dir The dir name. [string]
--project-id, --d $CI_PROJECT_ID. [string]
--key, --k SSH Key. [string]
--user, -u Git username. [string]
--email, -e Git email. [string]
`

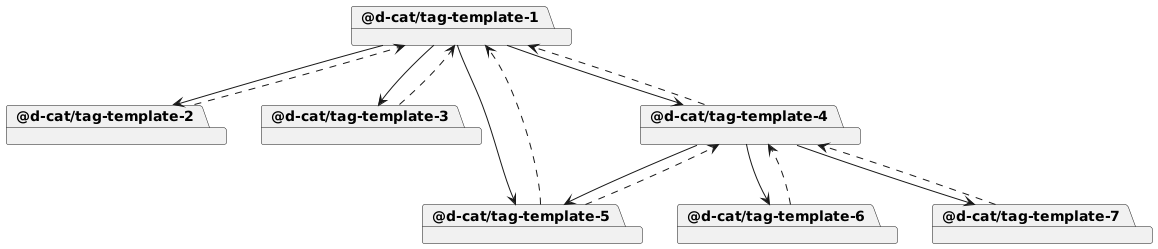

!update-dependents

#### Examples
Note that all flags are either mandatory or are set as an environment variable:

`bash
ACCESS_TOKEN=myAccesToken
DIR_NAME=foo
PROJECT_ID=1210
SSH_KEY=key
GIT_EMAIL=myEmail
`

`bash
npx tag-cli update-dependents --user myGitName
`
___

Tag commands

-------------------
A Tag is used to initialize a Tag Template or to handle a Google Tag Manager's data object. A tag should never contain complex logic. Use a tag template instead. A Tag is easy to read and easy to debug. There should be no complexity in a tag. The following is applicable for a Tag:

* it exports a default function without arguments;
* it initializes a tag template;
* it contains a publish-tag job;
* it contains no complexity.

$3


The create-new-tag command creates a new Tag boilerplate designed to use with @d-cat/tag-cli within GitLab CI/CD.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--force Force create of tag [boolean]
`

#### What's included
The Tag boilerplate contains all configurations to:
* Jest setup
* tslint setup
* prettier
* husky
* tag config file (tag-cli.json)
* dockerized tag environment to run the tag locally in isolation
* dockerized TMS that registers images in GitLab private registery
* stable pipeline file with artifacts enabled both on success and failure
* standard-version to created changelog + semver in the pipeline

#### Dependencies
By default dependencies are fixed in the package-lock.json and package.json files. Updating a package manually will break the pipeline as it runs npm ci, thus you have to update both package.json as package-lock.json:

`bash
npm i yourpackage@1.0.0
`

#### Examples
Make sure docker is installed and you've updated your .env file.

`bash


creating a tag boilerplate

npx tag-cli create-new-tag --force

creating a tag boilerplate with prompt

npx tag-cli create-new-tag --no-force

running a tag locally in isolation on localhost:1234

docker build -t ${img_name} .
docker run --name ${tag_name} --rm -p 1234:1234 ${img_name}:latest

running a tag locally in isolation with docker-compose

docker-compose build build
docker-compose up build

running the full tag pipeline (except uploading artifacts) locally in isolation

docker-compose build pipeline
docker-compose up pipeline
`

#### Configuring a tag
The create-new-tag command will create a file called tag-cli.json. This file contains all configurations. The tag-cli.json file includes both pipeline as tag manager settings.

##### Pipeline settings
This are settings that indicates how a tag should behave inside a pipeline.

| Prop | Type | Desc |
| ------------- |:-------------:| :-----|
| isPipelineActive | boolean | Boolean that indicates if the tags pipeline should run.|
| pipelineBranches | string[] | String array of branches that should trigger the Tag's pipeline. |
| isImportInTagManager | boolean | Boolean to indicate if the tag should be imported in the tag manager. |
| tagManagerBranches | string[] | String array of tag branches that should be included in a tag manager bundle. |
| isActive | boolean | Boolean that indicates if the tag is active. |
| isTrigger | boolean | Boolean that indicates if the tag should trigger the Tag Managers pipeline after a publish. |

##### Tag Manager settings
This are settings that determine how the tag should behave inside the Tag Manager.

| Prop | Type | Desc |
| ------------- |:-------------:| :-----|
| firingAmount | number | Amount a tag should be invoked when all business rules apply. |
| priority | number | Priority of tag. 1 is highest priority. |
| id | string | UUID. |
| urls | IUrl[] | Object Array that contains 2 props: url (RegExp) and reverse (boolean). |
| triggers | ITrigger[] | Boolean that indicates if the tag is active. |

###### ITrigger

| Options | Type | Required Description |
| --------- | :-----: | :------ |:---- |
| type | string | true | Type of the trigger, this must be one of the following: instantly, datalayer, event, domEvent, persisted. Note that when using instantly, this means the other triggers automatically are ignored, thus the tag will execute immediately. |
| id | string | true | Uniquely generated ID. Using the CLI this will generate an ID using uuid/v1. |
| name | string | false | Depending on the type, the name key has a different function. |
| value | string | false | Depending on the type, the value key has a different function. |
| reverse | boolean | false | Reverse the match on either value or name. |
| element | string | false | window, document both as string or an element ID. |

#### GitLab configuration
Make sure you did all necessary steps to start with GitLab.


##### CI/CD variables to create in GitLab
Before you run the pipeline, make sure you create the necessary CI/CD variables in your GitLab Tag project.

| CI/CD variable | Type | Description |
| ----------------------- | :------: | :----- |
| PERSONAL_ACCESS_TOKEN | variable | Your personal access token, that has owner rights of the tags group. |
| TAG_MANAGER_ID | variable | Gitlab Project ID of the Tag Manager. |
| GCLOUD_SERVICE_KEY | file | Your authentication file for Google Cloud. |
| SSH_KEY | file | Your SSH key to clone and push repo's of GitLab. |
| GIT_USER_EMAIL | variable | Your git email: git config user.email. |
| GIT_USER_NAME | variable | Your git user name: git config user.name. |
| CODECOV_TOKEN | variable | Your Codecov token to publish code coverage reports. |

##### Troubleshooting
> If the pipeline isn't running after the initial commit, trigger the pipeline manually.

---

$3


The test-tag command runs the test script as defined in your package.json and uploads a codecoverage report to Codecov.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--codecov, -c CodeCov token [string]
--branch-name, --n $CI_COMMIT_REF_NAME [string]
`

#### Examples
Note that all flags are either mandatory or are set as an environment variable.

`bash


secret codecov token generated in the codecov interface

CODE_COV_TOKEN=$MY_CODE_COV_TOKEN

run tests + upload report to codecov

npx tag-cli test-tag --branch-name $CI_COMMIT_REF_NAME
`

---

$3

The lint-tag command runs the TypeScript linter.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--branch-name, --n $CI_COMMIT_REF_NAME. [string]
`

#### Examples

`bash
npx tag-cli lint-tag --branch-name $CI_COMMIT_REF_NAME
`

---

$3


The type-tag command runs type checks the tag according TypeScript specs.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--branch-name, --n $CI_COMMIT_REF_NAME. [string]
`

#### Examples

`bash
npx tag-cli type-tag --branch-name $CI_COMMIT_REF_NAME
`

---

$3


The publish-tag command publishes tag artifacts in GitLab, increments the tag version and additionally triggers the Tag Managers pipeline to deploy a new version. The artifacts you publised can be fetched using GitLab's API. Both incrementing the version as triggering the Tag Managers API are optional. However, triggering the Tag Managers pipeline is configured in the tag-cli.json.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--job-token, -j Unique token. [string]
--access-token, -t Access token. [string]
--tag-manager-id, -i GitLab\'s Tag Manager project ID. [string]
--key, -k SSH Key. [string]
--user, -u Git username. [string]
--email, -e Git email. [string]
--increment-version Update using semver. [boolean]
`

#### Examples
Note that all flags are either mandatory or are set as an environment variable.

`bash


Personal access token generated within gitlab

ACCESS_TOKEN=$MY_PERSONAL_ACCESS_TOKEN

SSH key is used to increment the version of the npm package

based on the commits done, according to commitizen.

standard-version is used to update a major, minor or patch and use

NPM's semver.

KEY=$SSH_KEY

your git user + email for authentication

GIT_USER=$GIT_USER_VAR
GIT_EMAIL=$GIT_EMAIL_VAR

we need the job token to trigger the tag managers pipeline

using the job token will show the tag managers pipeline

to be triggered in GitLabs interface, and in the TMS

project it shows our tag defined as the triggerer

JOB_TOKEN=$CI_JOB_TOKEN

set a gitlab variable where the project id

of the tag manager is saved

TAG_MANAGER_ID=$TAG_MANAGER_PROJECT_ID

incrementing version

npx tag-cli publish-tag --increment-version

do not increment version

npx tag-cli publish-tag --no-increment-version
`

---

Miscellaneous commands

-------------------
Other commands.

---

$3

The bundle-dependencies command bundles the contents of all third party endpoints in tms.dependencies.json and writes the bundle to 3rd-party-dependencies.js or another specified output file.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--bucketName -b GCP Bucket Name [string]
--input -i Name of the input file [string]
--is-uglify -iu Should uglify mangle props [boolean]
--is-upload, ie Should upload to GCP [boolean]
--output -o Name of the output file [string]
--key-file-name -k Service file from GCP [object]
--tms-id -id Associated TMS ID [number]

`

#### Examples
`bash
npx tag-cli bundle-dependencies --output dependencies.js
`

#### tms.dependencies.json
The tms.dependencies.json holds an array with objects.

| Prop | Type | Desc |
| ------------- |:-------------:| :-----|
| prepend | string | A JS snippet placed in front of the SDK.|
| endpoint | string | The endpoint of the SDK, same as binary. |
| binary | string | The endpoint of the SDK, same as endpoint. |
| trigger | string | Event that will be emitted into DDM's event emitter, after the SDK is loaded. |
| wrapper | string | An optional special prop is called wrapper. This prop is meant to wrap or add some code in front or behind the SDK. The wrapper prop must contain a {{CODE}} string, as that's the place where the SDK will be interpolated. |

`json
[
{
"endpoint": "https://www.googletagmanager.com/gtm.js?id=GTM-1234567",
"prepend": "window.dataLayer=window.dataLayer||[];window.dataLayer.push({'gtm.start':new Date().getTime(),event:'gtm.js'}",
"trigger": "3rd.gtm.loaded"
},
{
"binary": "//snap.licdn.com/li.lms-analytics/insight.min.js",
"prepend": "_linkedin_data_partner_id = '234089'",
"trigger": "3rd.linkedin.loaded",
"wrapper": "var handler = function() {if (_ddm.get('user.cookieConsent') === 2){ {{CODE}} }}; _ddm.listen('user.cookie.accept', handler);handler();"
}
]
`

The place of {{CODE}} in the wrapper vaue will be interpolated with the SDK snippet.

---




$3


The clean-up command fetches all pipelines from the given project id and analyzes all it's jobs for artifacts. If an artifact found, it will be removed.

> Try to always set a expire_in variable for artifacts.

`bash
Options:
--version Show version number [boolean]
--help Show help [boolean]
--project-id, -i The current project ID: $CI_PROJECT_ID. [string]
--access-token, -t Access token. [string]
--stage, -s Name of the job\'s stage. Default "build". [string]
`

#### Examples
Note that all flags are either mandatory or are set as an environment variable.

`bash
npx tag-cli clean-up --project-id $CI_PROJECT_ID --access-token 1234
`

___

Troubleshooting


- Publishing tag TypeError: Cannot read property 'map' of undefined: make sure your tag-cli.json has an string array of both branchesToImportInTagManager and branchesToRunInPipeline.
- Publishing tag This tag didn't triggered the pipeline.: Make sure the branch that triggered the pipeline equals a branch that is whitelisted in your tag-cli.json.
- GitLab API: Fetching projects. Unexpected response received from GitLab: [object Object], or the amount of received projects meets the maximum of 1000. Received: undefined` : Retry the pipeline, as the GitLab API didn't returned a correct response. It has probably something to do with a connection lost / timeout.
