Directus Config Toolkit (DCT)

Directus Config Toolkit is a utility for managing Directus configurations across environments. It provides robust tools for exporting, importing, and versioning your Directus instance configurations, making it easier to implement DevOps practices with Directus.

Features

- Export & Import: Easily backup and restore Directus configurations including flows, roles, settings, files, and schema
- Configuration Versioning: Track changes over time with audit snapshots
- Web Dashboard: Intuitive GUI for managing configurations
- Docker Support: Containerized deployment options
- CI/CD Integration: Seamlessly integrate with CI/CD pipelines
- Time Machine: View configuration history and changes over time
- Import Preview: See changes before applying them
- Role & Permission Management: Safely transfer role configurations between environments

Project Structure

The project is now organized as a monorepo with two main packages:

- packages/core (@devrue/directus-config-toolkit): Core CLI functionality (formerly directus-ct)
- packages/ui (@devrue/directus-config-toolkit-ui): Web dashboard for GUI-based management

Installation

$3

``bash


Install globally

npm install -g @devrue/directus-config-toolkit

Or use with npx

npx @devrue/directus-config-toolkit [command]
`

$3

`bash


Pull and run the CLI image

docker pull ghcr.io/peter-olom/directus-config-toolkit:latest
docker run -v $(pwd)/config:/app/config -e DCT_API_URL=http://directus:8055 -e DCT_TOKEN=your_token ghcr.io/peter-olom/directus-config-toolkit:latest [command]

Pull and run the UI image

docker pull ghcr.io/peter-olom/directus-config-toolkit-ui:latest
docker run -p 3000:3000 -v $(pwd)/config:/app/config -e DCT_API_URL=http://directus:8055 -e DCT_TOKEN=your_token ghcr.io/peter-olom/directus-config-toolkit-ui:latest
`

Configuration

DCT can be configured using environment variables:

`bash


Required variables

DCT_API_URL=http://localhost:8055 # Your Directus instance URL
DCT_TOKEN=your_token # Your Directus API token

Optional variables

DCT_CONFIG_PATH=./config # Path to store configuration files
DCT_AUDIT_PATH=./audit # Path to store audit logs and snapshots
DCT_AUDIT_RETENTION_DAYS=30 # Days to keep audit snapshots

If Using the UI

AUTH_SECRET=random-secret-used-by-next-auth
AUTH_TRUST_HOST=true # Use this if you run into - UntrustedHost: Host must be trusted. URL was: http://localhost:PORT/api/auth/session. Read more at https://errors.authjs.dev#untrustedhost
DCT_UI_URL=http://localhost:3000
DCT_UI_USERNAME=admin
DCT_UI_PASSWORD=bcrypt-hash-string # DCT can generate this for you
`

You can set these variables in your shell, a .env file, or pass them directly when using Docker.

CLI Commands

> Note: The binary name has changed from directus-ct to dct

$3

`bash


Export configuration

dct export # Export a specific configuration type
dct export-all # Export all configuration types in the correct order

Import configuration

dct import # Import a specific configuration type
dct import-all # Import all configuration types in the proper sequence
dct import-all --continue-on-error # Continue importing if one type fails

Available types: schema, roles, files, settings, flows

`

$3

`bash


List snapshots

dct audit list

Show differences between snapshots

dct audit diff

See configuration changes over time

dct audit timemachine [--limit ] [--start-time ]

Show import differences

dct audit import-diffs
`

$3

`bash


Show environment configuration

dct config

Debug connection issues

dct debug
dct debug-env

Generate secure password hash for UI authentication

dct hash-password [-p password] [-o output-file]
`

$3

`bash


Start the UI

dct ui start [-p port] [-t tag] [-n name]

Check UI status

dct ui status [-n name]

Stop the UI

dct ui stop [-n name]

View UI logs

dct ui logs [-n name] [-f]
`

Web Dashboard

For those who prefer a graphical interface, DCT includes a web-based dashboard for managing your Directus configurations.

$3

`bash


Using the CLI

dct ui start

Using Docker

docker run -p 3000:3000 \
-e DCT_API_URL=http://directus:8055 \
-e DCT_TOKEN=your_token \
-v $(pwd)/config:/app/config \
-v $(pwd)/audit:/app/audit \
ghcr.io/peter-olom/directus-config-toolkit-ui:latest
`

The dashboard provides:

- At-a-glance configuration status

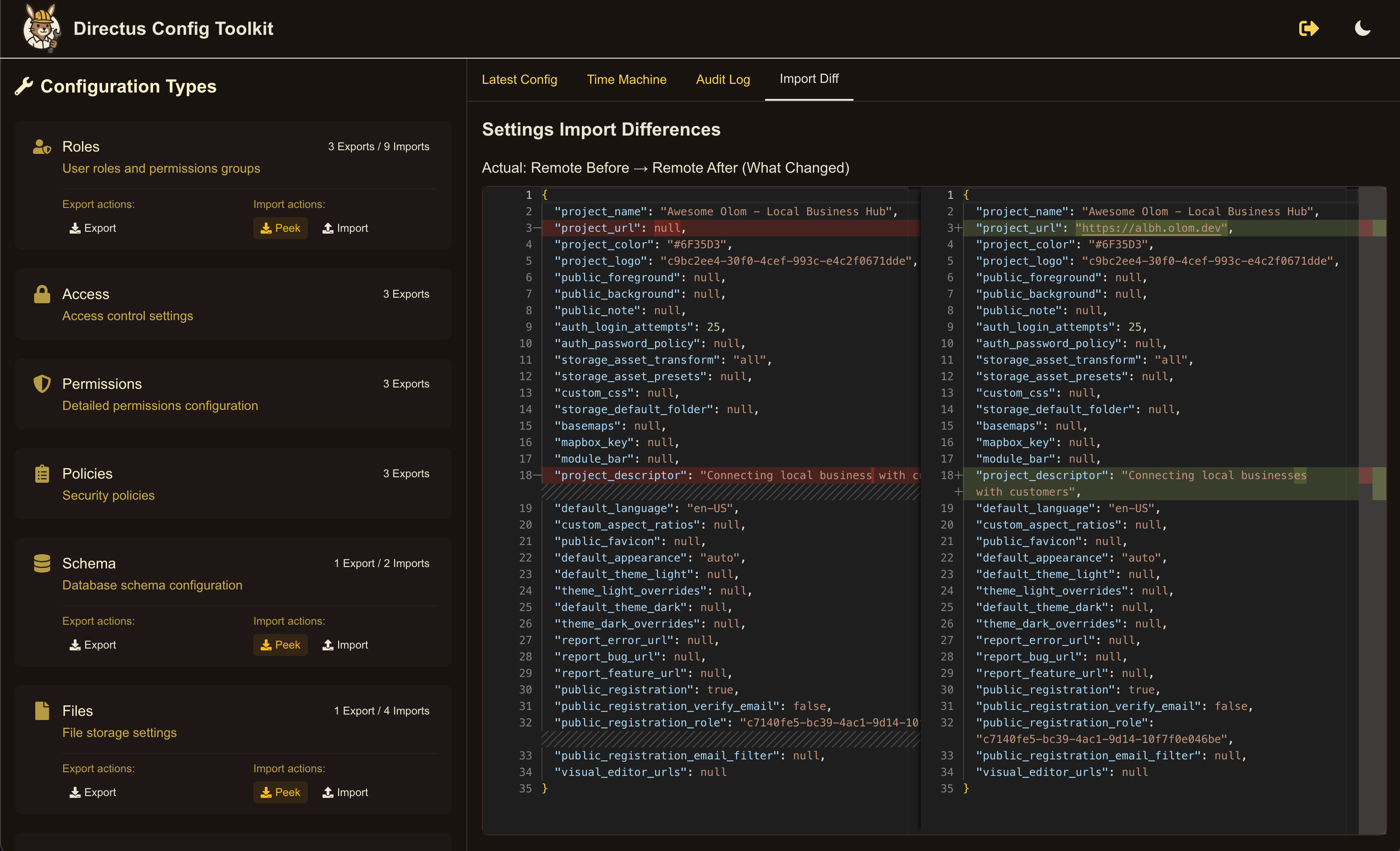

- Interactive diff viewing
- Configuration export/import with visual feedback

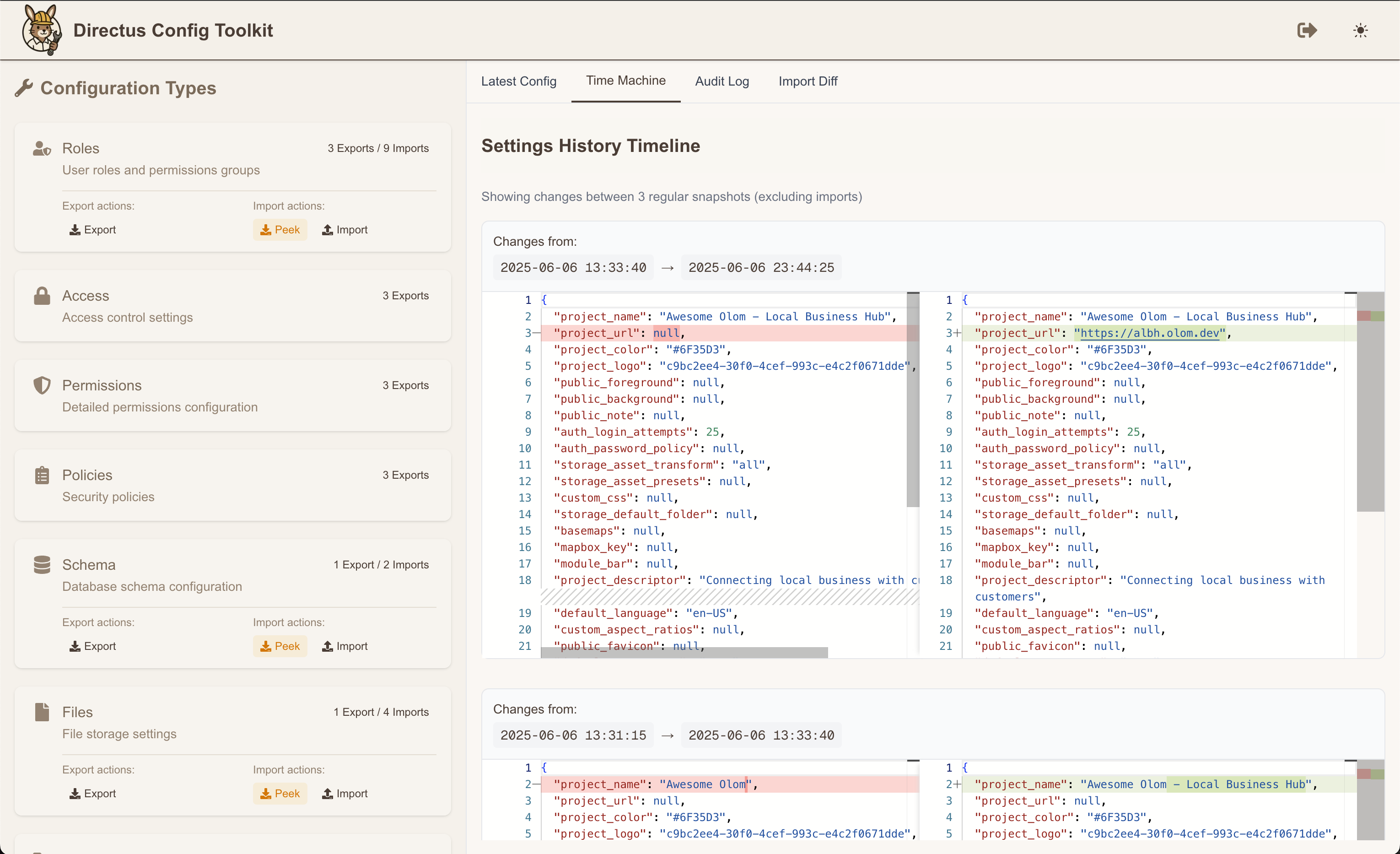

- Time machine for browsing configuration history
- Easy setup for CI/CD pipelines

How It Works

$3

When you export configurations, DCT:

1. Connects to your Directus instance using the provided API token
2. Fetches the specified configuration type(s)
3. Stores the configurations as JSON files in the config directory
4. Creates audit snapshots for tracking changes over time

$3

When you import configurations, DCT:

1. Reads the configuration files from the config directory
2. Creates a snapshot of the current state of your Directus instance
3. Applies the configurations to your Directus instance
4. Creates an "after" snapshot to document changes
5. Follows the correct sequence to handle dependencies between configuration types

Troubleshooting

$3

If you're having trouble connecting:

`bash


Check your environment configuration

dct debug-env

Test connection and authentication

dct debug
`

$3

Schema imports can fail if there are incompatible changes:

`bash


Try running the schema import in dry-run mode


dct import schema --dry-run
`

$3

The tool handles special cases like admin roles and public permissions:

- Admin roles are automatically excluded from export/import
- Public roles are mapped between environments by name and icon, not by ID
- Role references in permissions and policies are automatically remapped

Development

To contribute to DCT:

`bash


Clone the repository

git clone https://github.com/peter-olom/directus-config-toolkit.git
cd directus-config-toolkit

Install dependencies

npm install

Build the packages

npm run build

Run the core package in development mode

cd packages/core
npm run dev

Run the UI in development mode

cd packages/ui
npm run dev
``

See DEVELOPMENT.md for more detailed development instructions.

Acknowledgements

- The Directus team for their amazing headless CMS 🤩
- Contributors to this project
- Users who provide feedback and bug reports

---

For more information, visit the GitHub repository.
