chartformers



chartformers is a lightweight React.js library for rendering interactive, responsive, and animated D3.js charts.
!Demo
It is designed to simplify chart creation in modern React apps while retaining the full power of D3 under the hood.

✨ Features

- Easy-to-use React components for common chart types
- Smooth animated transitions
- Performance-first:
- ~46 KB min+gzip for typical usage
- ~27–30 KB gzip per chart (tree-shaken)
- Fully tree-shakeable and modular
- Full TypeScript support
- Responsive charts that auto-fit their containers
- Simple styling with included CSS
- Powered by D3.js + React 19

> Note: npm unpacked size includes source maps, type definitions, and multiple build formats.
> Production bundle size depends on which charts you import.

📦 Installation

``bash
npm install chartformers@latest
`

To use a bar chart component import these:
`bash
import { BarChart } from 'chartformers';
import 'chartformers/dist/chartformers.css';
`
Render the chart inside a container with explicit width and height:
`js

`

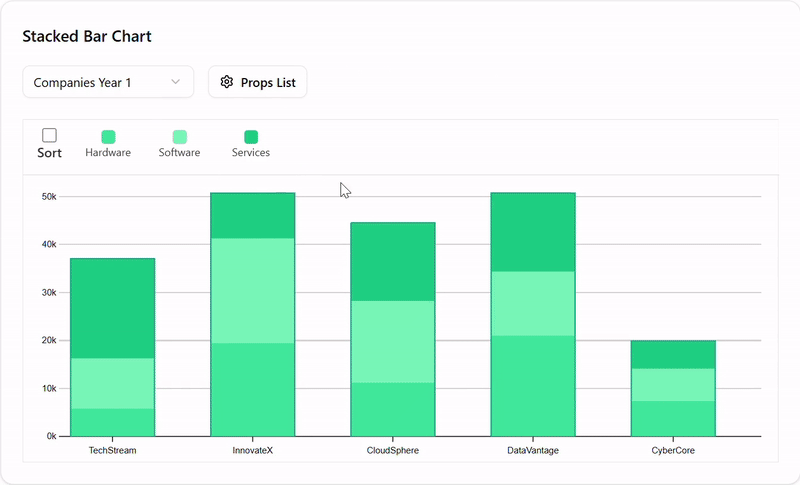

Example: sortable stacked bar chart

`js
import { StackedBarChart } from "chartformers";
import 'chartformers/dist/chartformers.css';

export default function StackedBarChartExample() {
const companyData = [
{
"label": "TechStream",
"Hardware": 5409,
"Software": 8200,
"Services": 10390,
"Consulting": 21500,
"Maintenance": 7506
},
{
"label": "InnovateX",
"Hardware": 11265,
"Software": 8657,
"Services": 18200,
"Consulting": 9400,
"Maintenance": 5286
},
{
"label": "CloudSphere",
"Hardware": 16087,
"Software": 14200,
"Services": 22400,
"Consulting": 19423,
"Maintenance": 11935
},
{
"label": "DataVantage",
"Hardware": 9912,
"Software": 15900,
"Services": 14674,
"Consulting": 13322,
"Maintenance": 11500
},
{
"label": "CyberCore",
"Hardware": 3488,
"Software": 5520,
"Services": 6685,
"Consulting": 7433,
"Maintenance": 5769
},
{
"label": "AetherSystems",
"Hardware": 6811,
"Software": 8900,
"Services": 8582,
"Consulting": 24100,
"Maintenance": 6700
}
];

return (

);
}
``
!Demo

For full explanations on the options and properties, with live demo:

Visit the chartformers documentation.

Or you can grab the source code at:

the github repo
