Streaming Video Player

Play HLS and MPEG-DASH adaptive video streams and standard video files in Directus with a customizable video player interface.

Overview

This extension adds a video player interface to Directus allowing you to play videos on collection item detail views of the Data Studio. The player is able to play local or remote adaptive HLS and MPEG-DASH streams (e.g., from Cloudflare Stream), as well as standard video files (MP4, etc.). It works with both string fields (for stream links) and Directus files (uploaded videos).

Features

- Videos in Items: Play videos on collection items detail page
- Adaptive Streaming: Play adaptive HLS (m3u8) and MPEG-DASH (mpd) video streams
- Quality Labels: Display current stream quality (e.g., 720p, 1080p, 4K) for both HLS and DASH streams
- Standard Videos: Support for MP4 and other standard video formats
- File Upload: Uses Directus native drag & drop upload component known from default image interface
- File Module Integration: HLS and DASH streaming on Directus file detail pages (with custom field)
- Keeps Native Interface Options:
- Default upload folder & filter for files
- Directus native options for input fields.
- Poster Images: Display poster images for video previews
- Native Player: Full-featured HTML5 video player with controls, no fancy themes

Installation

$3

1. Open your Directus project
2. Navigate to Settings → Extensions
3. Click Browse Marketplace
4. Search for "Streaming Video Player"
5. Click Install

$3

1. Install package

``bash
npm install directus-extension-streaming-video-player
`

2. Build the extension:
`bash
npm run build
`

3. Copy the dist folder to your Directus extensions directory:
`
directus/extensions/directus-extension-streaming-video-player/
`

4. Restart your Directus instance

$3


To make HLS/DASH Streaming work, update your CSP directives as follows:
`env
CONTENT_SECURITY_POLICY_DIRECTIVES__MEDIA_SRC=array:'self', blob: data:
`

Usage

$3

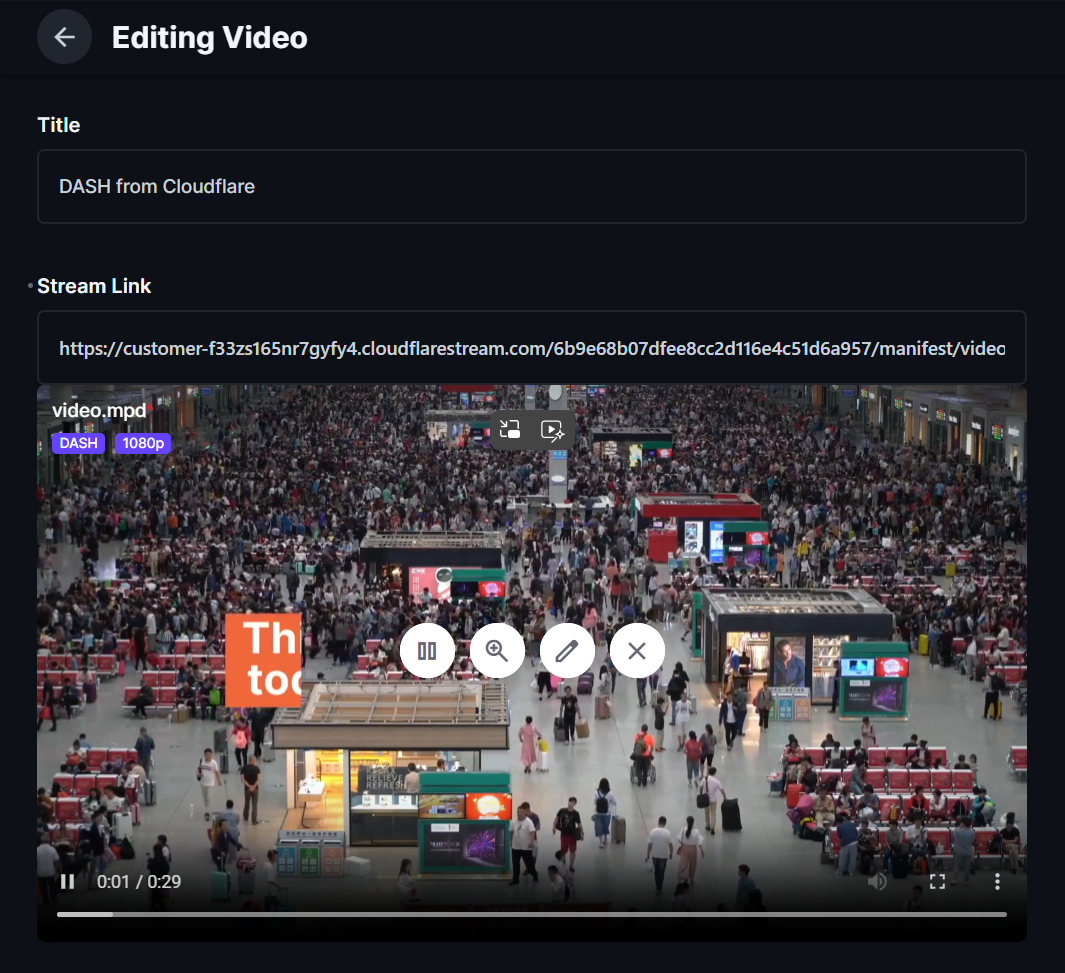

Use this interface on string fields to play HLS or MPEG-DASH stream links:

1. Go to your collection settings
2. Select a string field
3. Set the interface to Streaming Video Player
4. In collection item view: Enter stream paths for local origin resources (e.g., /assets/:UUID) or full URLs for remote/other resources
- HLS streams: URLs ending in .m3u8 (e.g., https://example.com/video.m3u8)
- DASH streams: URLs ending in .mpd (e.g., https://example.com/video.mpd)

$3

Use this interface on file fields to play uploaded video files:

1. Go to your collection settings
2. Select a file field (UUID type)
3. Set the interface to Streaming Video Player
4. In collection item view: Upload or select video file

The player supports MP4 and other standard video formats.

$3

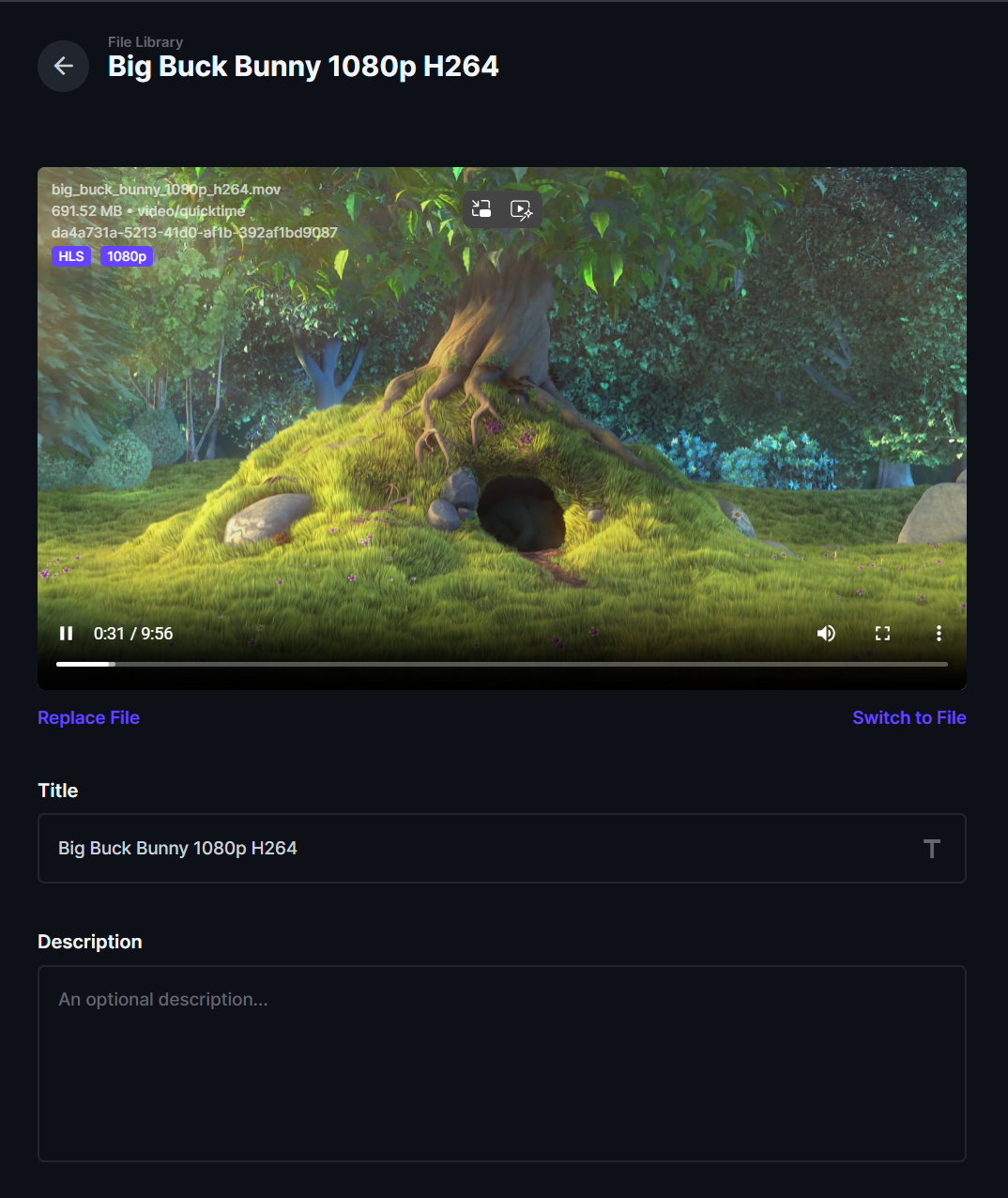

When applied to a custom string field in directus_files, this extension will replace the default video player in the file detail page and prefer playing the HLS or DASH stream:

1. Add a string field to directus_files (e.g., stream_link)
2. Set the interface to Streaming Video Player
3. In directus_files item detail view: Enter stream link in the custom field and it will be picked up by the player

Use the toggle button to switch between stream (HLS/DASH) and source file playback.

Configuration

- Poster Image Field Name: Name of the field that contains a poster/thumbnail image for player. It must be a file field (image) for uploaded images or a string field containing a full image URL.
- Stream Link Field Name: (File field only) Name of a custom field in relational directus_files that contains the stream link. This enables the player to play the relational file HLS stream on a collection item detail page, instead of playing the source video file.

$3

- Host URL: Host domain (e.g., https://example.com). Default is the local Directus URL. Leave empty when working with fully qualified URLs in collection item field.
- Stream Secret: (Optional) Secret key for generating tokens for protected stream links if your streaming backend requires it. Further reading: https://nginx.org/en/docs/http/ngx_http_secure_link_module.html
- Token/MD5 hash: {token_expiration_time} + {ip (optional)} + {secret}
- URL Schema: (Optional) URL template with mustache syntax placeholders for advanced construction of protected stream links. Available placeholders:
- {{host_url}} - Host URL value
- {{token}} - Generated secure token (requires Stream Secret)
- {{expires}} - Expiration timestamp (requires Stream Secret)
- {{item_field}} - Value from the collection item field

Example:
- Host URL: https://example.com/stream/
- Item field value: my_playlist.m3u8
- URL Schema: {{host_url}}{{token}}/{{expires}}/{{item_field}}
- Player link: https://example.com/stream/RO0G0oaX3n6eGMWWmKPiUw/1764939309/my_playlist.m3u8

Default behavior (when URL Schema is not set):
- Host URL: https://example.com
- Item field value: /stream/my_video.m3u8
- Player link: https://example.com/stream/my_video.m3u8

- Token Expiration (minutes): Token expiration time in minutes (default: 60)
- Include IP: (Not available yet) Include client IP address in secure token generation for client-unique stream link protection (optional, default: false)

Integration with Transcode Video Operation

This player works seamlessly with the Transcode Video Operation extension (available in Directus Marketplace):

1. Use the Transcode Video Operation to convert standard videos to HLS format with multiple quality levels
2. Store the master playlist reference in a string field (e.g., /assets/:uuid`)
3. Apply Streaming Video Player interface on that string field to play the adaptive HLS stream
4. The player will automatically detect and play the HLS stream with quality selection

License

MIT
