Giraflow – live preview server for .giraflow.json models with hot reload
npm install giraflowLive preview server for .giraflow.json models — edit your model file and see changes instantly in the browser.
``bash`
npm install -g giraflow
`bash`
giraflow my-model.giraflow.json
This starts a local server and opens your browser. Any changes you save to the file are reflected immediately via hot reload.
| Option | Description |
|--------|-------------|
| -p, --port | Port to run server on (default: 3000) |--no-open
| | Don't open browser automatically |-h, --help
| | Show help |
`bashCustom port
giraflow model.giraflow.json --port 8080
Views
Switch between views using the navigation bar in the browser.
$3

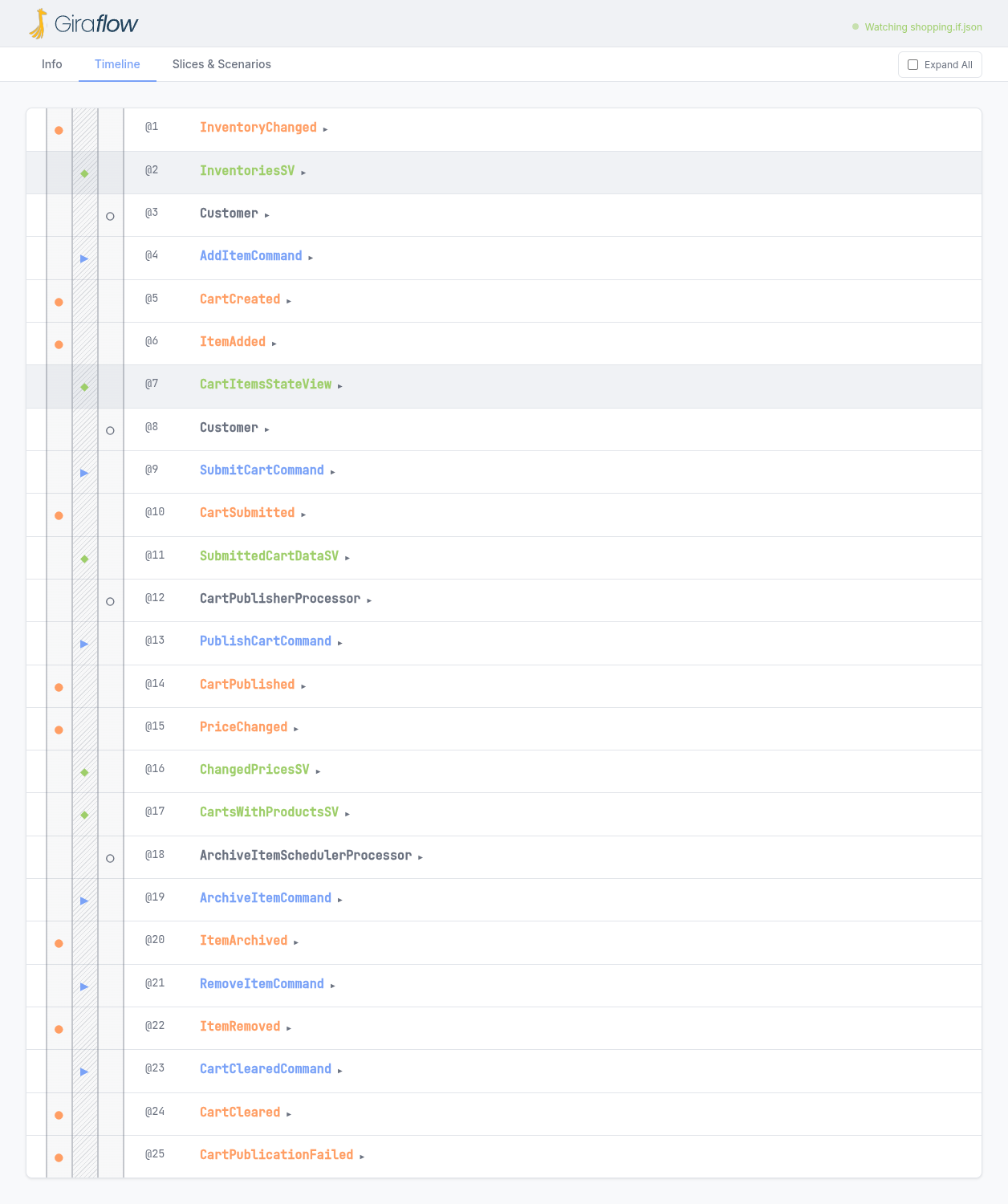

Chronological flow of events, state views, commands, and actors with colored symbols and example data.
$3

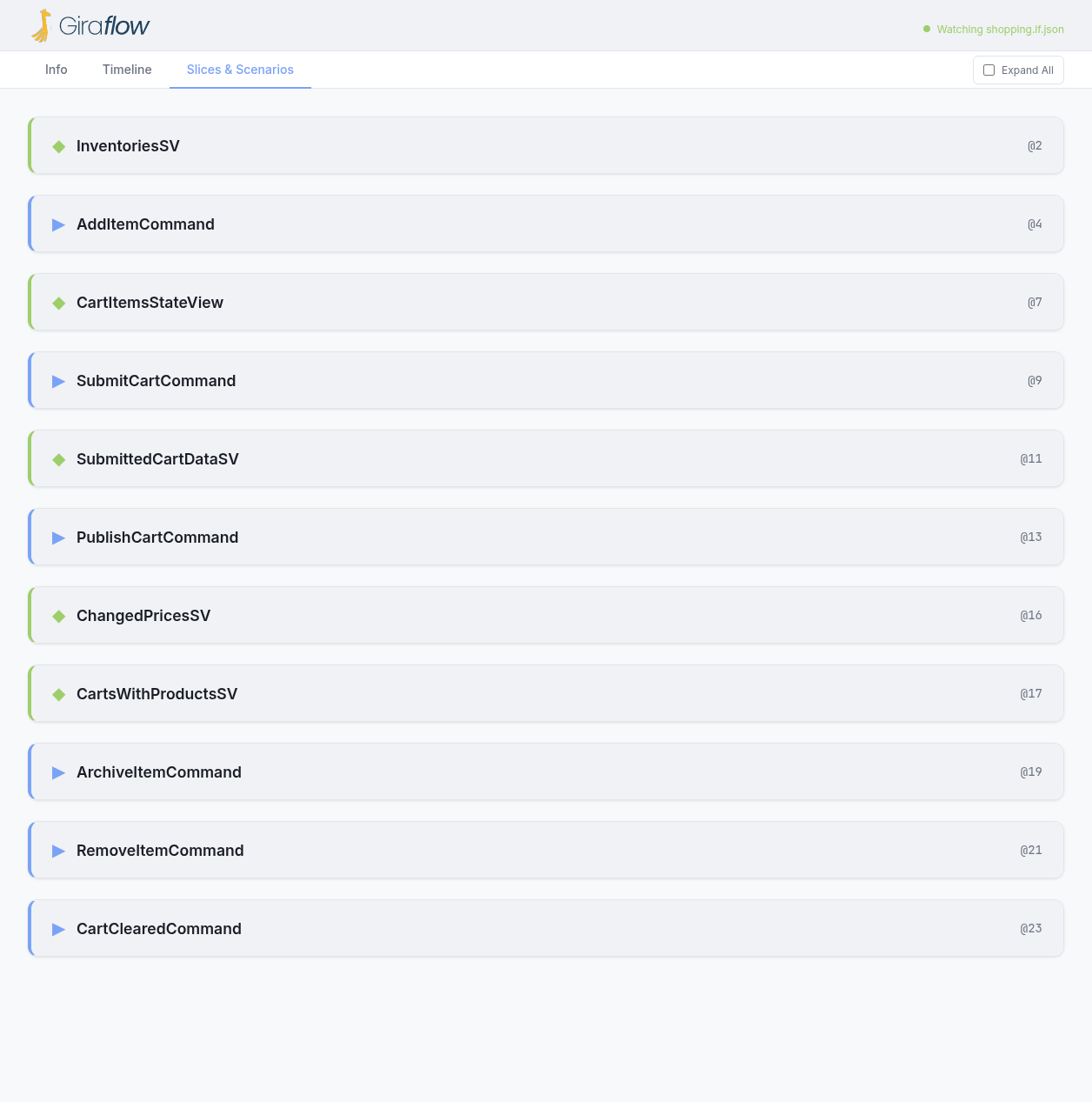

Each element as an expandable card with JSON examples and Given-When-Then scenarios.
Expanded:
$3

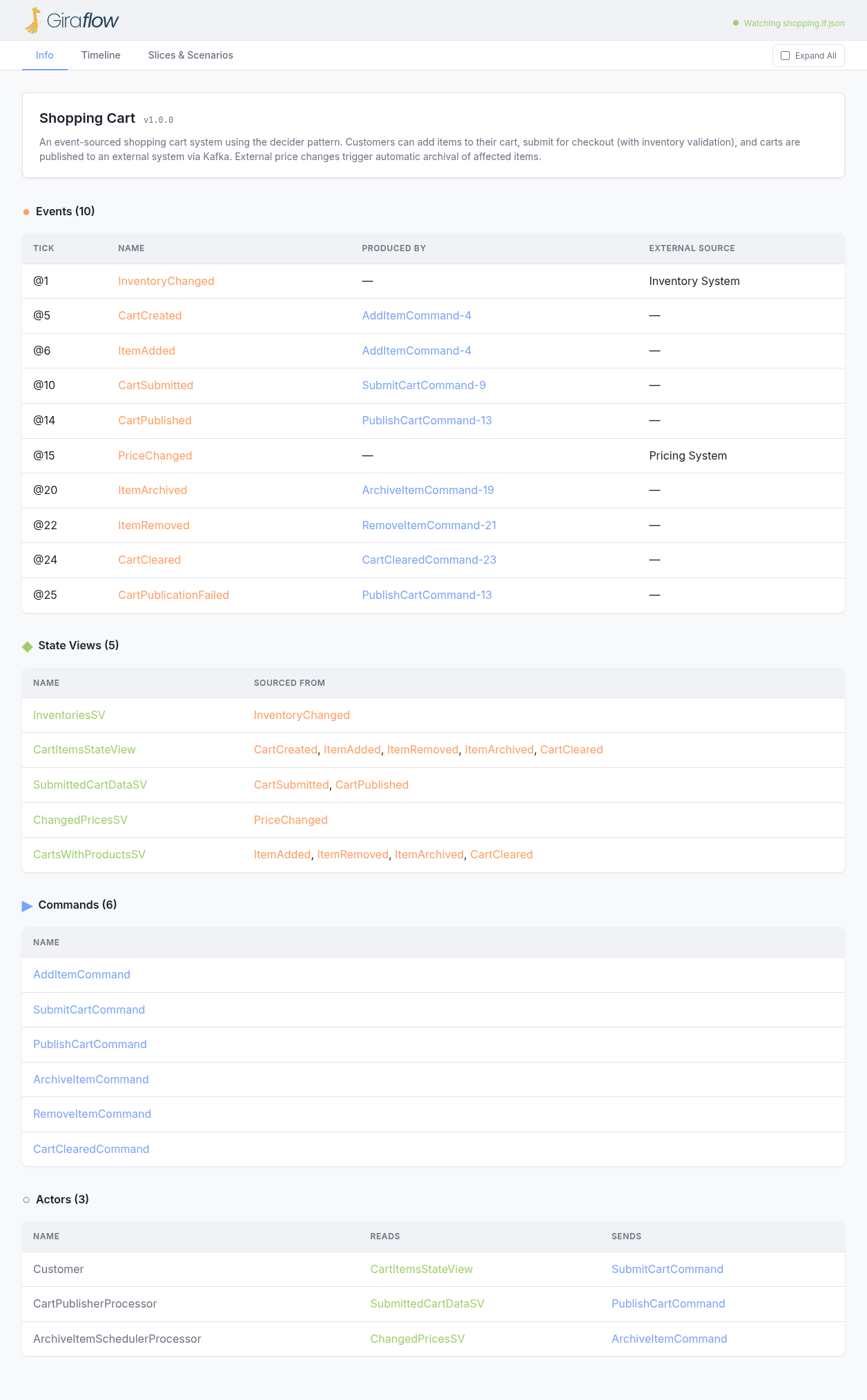

Consolidated tabular overview of all elements grouped by type.
See Also
giraflow-cli — Terminal-based views, schema validation, and interactive model creation wizard.
File Format
Models are JSON files following the Giraflow JSON Schema. A minimal example:
`json
{
"name": "My Model",
"timeline": [
{ "type": "event", "name": "OrderPlaced", "tick": 10 },
{ "type": "state", "name": "OrdersSV", "tick": 20, "sourcedFrom": ["OrderPlaced"] },
{ "type": "actor", "name": "WarehouseWorker", "tick": 30, "readsView": "OrdersSV", "sendsCommand": "ShipOrder" },
{ "type": "command", "name": "ShipOrder", "tick": 40 }
]
}
``See more in the examples directory.
