gitbook-plugin-uml


PlantUml Plugin for Honkit ~~and GitBook~~.

This is a sample plugin for ~~GitBook~~ Honkit and is specially adapted for ~~GitBook~~ Honkit from PlantUML. ~~Gitbook~~ Honkit PlantUml plugin is used to select from markdown uml and converting it into a picture format svg.

Installation

Install honkit instead of gitbook-cli(deprecated).

Install JRE or JDK please. Ensure your system have java.

It will download plantuml jar file automatically, so in some country and region you must install it behind a proxy, or it will download fail.

Gitbook PlantUml plugin can be installed from NPM using:

``bash
npm install gitbook-plugin-uml
`

Add this plugin into book.json.

`json
{
"plugins": ["uml"]
}
`

FAQ

Important:

** Please ensure your system have java!!! Or this plugin may not work, and get `Error: spawn java ENOENT`

** It will download plantuml jar file automatically, so in some country and region you must install it behind a proxy, or it will download fail.

Features

* Support HTML, PDF, EPUB output(make sure your gitbook support SVG)
* Support ` flow code block quote
* Multi code style support

Beautiful UML

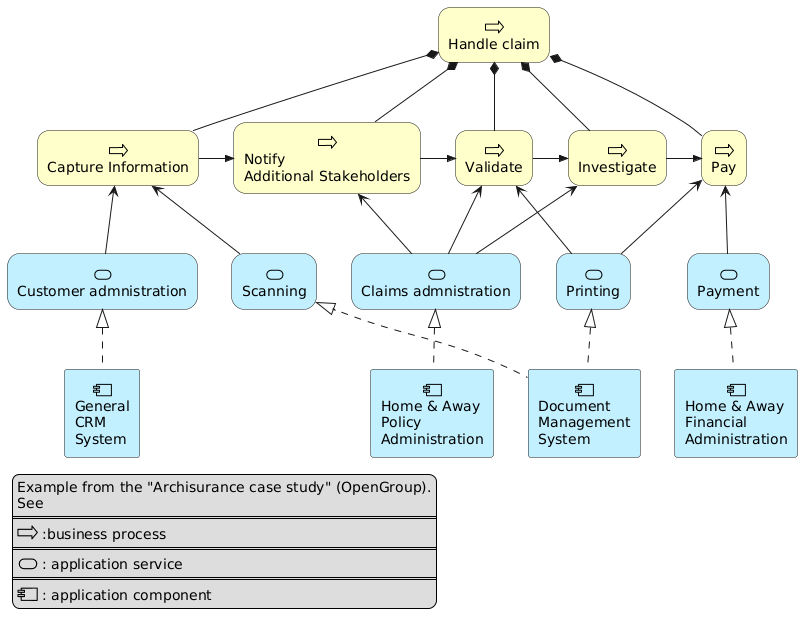

!ARCHIMATE

!WAVEFORM

How to use it

To include a PlantUML diagram, just wrap your definition in a "uml" code block. For example:

!UML

Text format uml:

`uml
@startuml
	Class Stage
	Class Timeout {
		+constructor:function(cfg)
		+timeout:function(ctx)
		+overdue:function(ctx)
		+stage: Stage
	}
 	Stage <|-- Timeout
@enduml
`

And what's more, `puml` and `plantuml` code block also OK.

`puml
@startuml
	Class Stage
	Class Timeout {
		+constructor:function(cfg)
		+timeout:function(ctx)
		+overdue:function(ctx)
		+stage: Stage
	}
 	Stage <|-- Timeout
@enduml
`

Also you can put in your book block as

`markdown
{% uml %}
@startuml

Class Stage
Class Timeout {
+constructor:function(cfg)
+timeout:function(ctx)
+overdue:function(ctx)
+stage: Stage
}
Stage <|-- Timeout

@enduml
{% enduml %}
`

The block syntax also allows for a src attribute to import an external PlantUml file.

`text
{% uml src="test.plantuml" %}{% enduml %}
`

Of course, you can also pass the parameters like this.

`puml { src="test.plantuml" }
`

Configuration

book.json add the uml options

Configure plugin in book.json.

`json
"pluginsConfig": {
"uml": {
"format": "png",
"nailgun": false
}
}
`

Build and serve

This plugin only works in your local machine. You need to play with local gitbook (command-line tool) to pre-compile all uml images.

`terminal
gitbook serve yourbook
`

or

`terminal
gitbook build yourbook
`

Additional requirements

For Mac OS X users. Install graphviz package.

`bash
brew install graphviz
`

For Linux users, Install graphviz package.

`bash
sudo apt install graphviz
`

`bash
sudo yum install graphviz
`

Debian/Ubuntu users may need install default-jre prevent Error: spawn java ENOENT.

`bash
sudo apt-get install default-jre
``

Thanks

This plugin original from lyhcode/gitbook-plugin-plantuml

See also

These plugins are also available on honkit.

| Plugin | Description |
| ----------------------------------------------------------------------------- | ------------------------------------------------------ |
| gitbook-plugin-uml | A plug-in that use plantuml to draw beautiful pictures |
| gitbook-plugin-wavedrom | A plug-in that can draw waveforms and register tables |
| gitbook-plugin-sequence | A plug-in that can draw sequence diagrams |
| gitbook-plugin-flow | A plug-in that can draw flowchart.js diagrams |
| gitbook-plugin-echarts | A plug-in that can draw various charts such as bar/pie |
