A commenting system for PatternFly React applications that allows designers and developers to add comments directly on design pages, sync with GitHub Issues, and link Jira tickets.
A commenting system for PatternFly React applications that allows designers and developers to add comments directly on design pages, sync with GitHub Issues, and link Jira tickets.
This package modifies your project files during setup. Before uninstalling, you MUST run:
``bash`
npx hale-commenting-system remove
npm uninstall hale-commenting-system
Failure to run remove first will break your app. See Uninstalling for details.
- React Component Detection - Automatically identifies React components with names, types, props, and component tree paths
- Smart Pin Positioning - Pins anchor to elements using CSS selectors and follow them on scroll/resize
- Hover Preview - Visual preview with dashed border before creating a comment
- Component Highlighting - Chrome DevTools-style blue border on selected components
- Resizable Widget - Adjustable panel size (300-800px width)
- Thread Discussions - Organized comment threads with replies
- GitHub Integration - Automatic sync with GitHub Issues including component metadata
- Jira Integration - Link tickets to specific pages or sections
- Missing Element Detection - Pins fade and show [deleted] when target is removed
This package was developed for PatternFly React Seed projects, but can be used with similar PatternFly React applications that have:
- Webpack-based setup with webpack.dev.js
- directory structure
- PatternFly React Core and Icons dependencies
The automated integration script (npx hale-commenting-system init) works best with PatternFly React Seed or projects with a similar structure.
`bashInstall
npm install hale-commenting-system
The interactive setup will guide you through configuring GitHub OAuth and Jira integration (both optional).
Uninstalling
Always remove integration before uninstalling:
bash
Step 1: Remove integration
npx hale-commenting-system removeStep 2: Uninstall package
npm uninstall hale-commenting-systemStep 3: Restart
npm run start:dev
`$3
If your app is broken after uninstalling without running
:`bash
npm install hale-commenting-system
npx hale-commenting-system remove
npm uninstall hale-commenting-system
`
What the removal script does
- Removes imports from
- Removes imports from
- Notifies about webpack middleware (may require manual removal)
- Keeps and .env.server files
Usage
$3
1. Hover over any component to see a preview with a dashed blue border and component label
2. Click to attach a comment pin - the system detects React components automatically
3. View component details in the panel including name, type, tree path, and props
$3
- Toggle visibility - Enable/disable comments or use "Show pins" to view without creating new ones
- Resize widget - Drag the resize handle (300-800px width, 200px to viewport height)
- Pin behavior - Pins follow elements on scroll/resize; fade to 40% opacity if element is deleted
- Thread discussions - Reply to comments, close/reopen threads, view all in sidebar
- Remove pins - Delete comment threads as needed
$3
The system uses a hybrid approach:
React Component Detection (Primary)
- Detects components using React fiber nodes
- Extracts name, type, props, and component tree path
- Works with all React component types including HOCs
CSS Selector Fallback
- Uses
data-testid, id, or tag + class + aria attributes
- Stores coordinates as fallback if element is deleted$3
GitHub (Optional)
- Comments sync as GitHub Issues with component metadata
- Replies sync as issue comments
- Status changes (open/closed) sync bidirectionally
Jira (Optional)

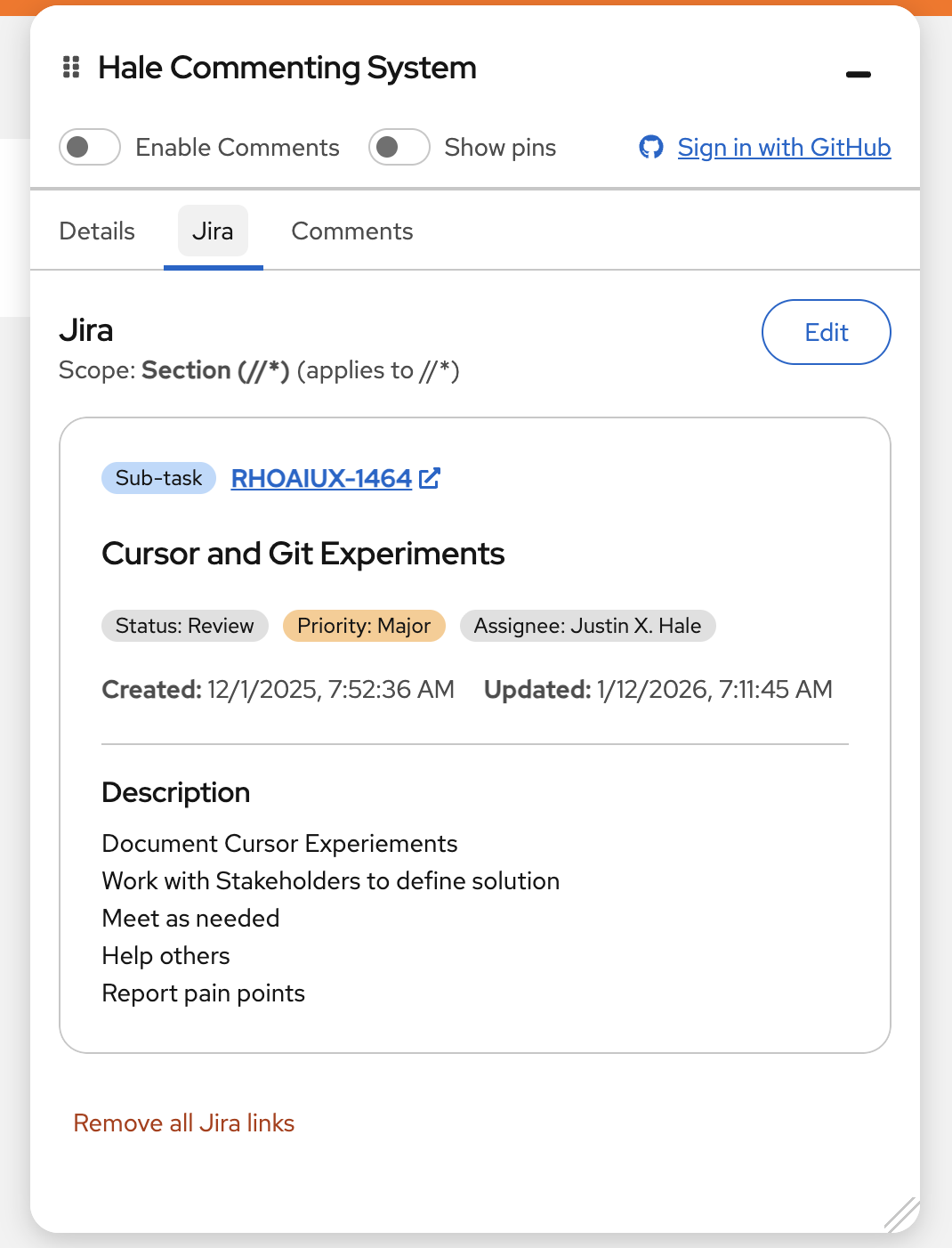

- Link Jira tickets to specific pages or sections
- View ticket details in the commenting panel
- Track design work alongside development
Configuration
.env (client-side, safe to commit)
- GitHub OAuth client ID, Jira base URL
.env.server (server-side secrets, auto-added to .gitignore)
- GitHub OAuth client secret, Jira API tokensRequirements
- PatternFly React Seed project (or compatible PatternFly React app)
- Node.js 18+ (for webpack middleware with native
fetch())
- React 18+What Gets Modified
The
init script automatically updates:
- src/app/index.tsx - Adds providers
- src/app/routes.tsx - Adds Comments route
- src/app/AppLayout/AppLayout.tsx - Adds panel and overlay components
- webpack.dev.js - Adds OAuth/Jira proxy middleware
- Creates src/app/Comments/Comments.tsx and config filesLocal Testing
Click to expand testing instructions
$3
`bash
In package directory
npm run build && npm linkIn test app
npm link hale-commenting-system
npx hale-commenting-system init
npm run start:devClean up when done
npx hale-commenting-system remove
npm unlink hale-commenting-system && npm install
`$3
bash
In package directory
npm run build && npm packIn test app
npm install /path/to/hale-commenting-system-*.tgz
npx hale-commenting-system init
npm run start:dev
`$3
- Hover preview and pin creation
- Component detection (name, type, path, props)
- Pin positioning and dynamic tracking
- Widget resizing and toggles
- Element deletion handling
- Comments, replies, and GitHub/Jira sync
Development
bash
npm install # Install dependencies
npm run start:dev # Start dev server
npm run build # Production build
``MIT
For issues or questions, please open an issue on GitHub or npm.
