Locus AR (formerly TapTapp AR) is a high-performance Augmented Reality (AR) engine for Node.js and the Browser. It provides an ultra-fast offline compiler and a lightweight runtime for image tracking, now featuring a premium client library for React.

100% Pure JavaScript: This package is completely independent of TensorFlow.js, resulting in massive performance gains and zero-latency initialization.

---

📖 Table of Contents

- 🌟 Key Features
- 🛠 Installation
- 📊 Industry-Leading Benchmarks
- 🛡️ Robustness & Stability
- 🖼️ Compiler Usage
- 🎥 Runtime Usage
- Locus Component
- Locus Hook
- Native API
- Custom Overlays
- Three.js / A-Frame
- 🏗️ Protocol V11
- 🔍 Visual Search & Embeddings
- 📄 License & Credits

---

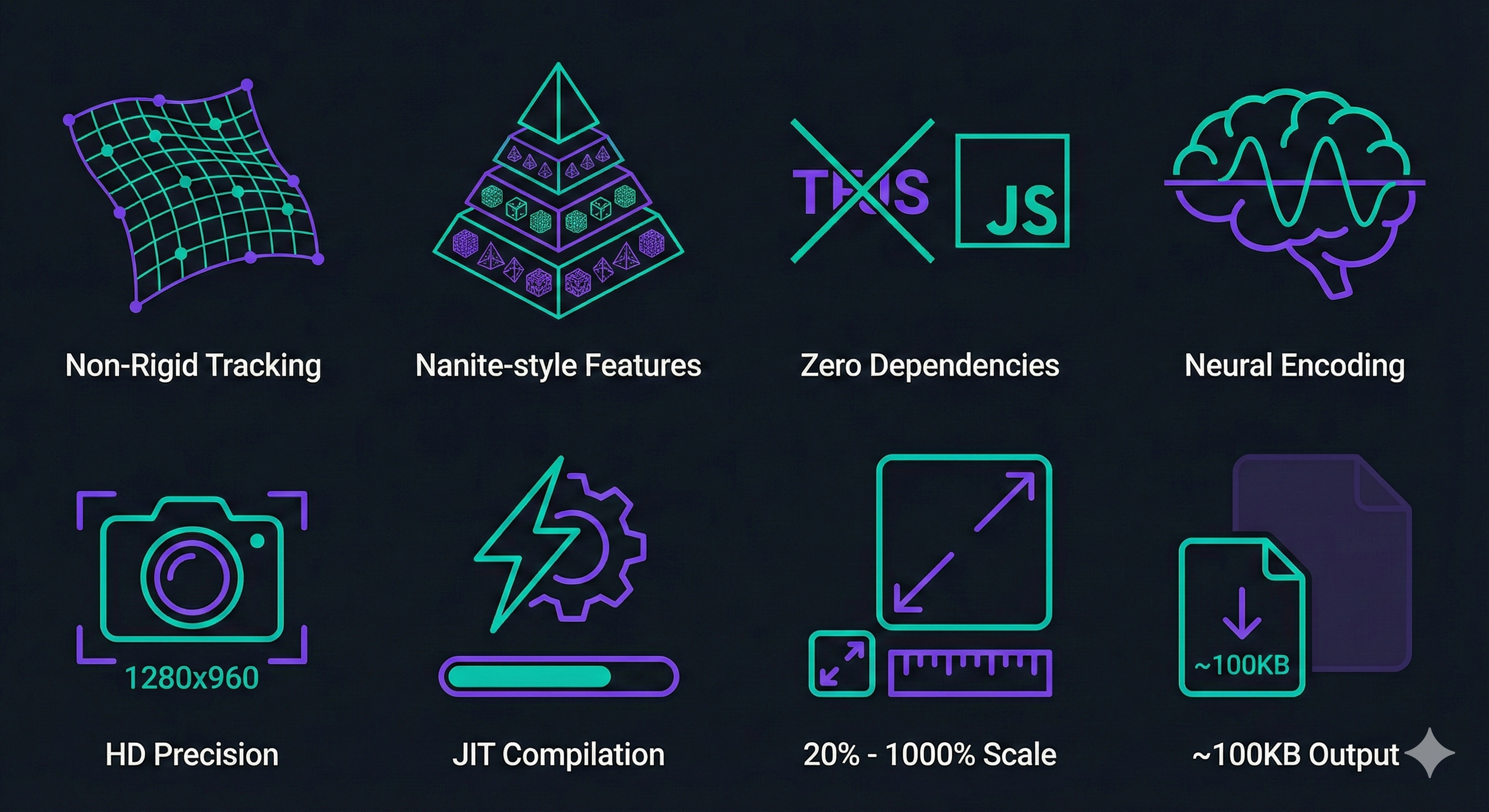

🌟 Key Features

| Feature | Description |
|---------|-------------|
| 🎭 Non-Rigid Tracking | Curved & deformable surfaces with Delaunay Meshes |
| 🚀 Nanite-style Features | Single-pass multi-octave detection |
| ⚡ Zero Dependencies | No TensorFlow.js - Pure JavaScript |
| 🧬 Neural Encoding | Fourier positional encoding (GPT-style) |
| 🧵 HD Precision | 1280x960 default resolution |
| ⚡ JIT Compilation | Pass an image URL, track instantly |
| 📏 20% - 1000% Scale | Extreme scale range from a single keyframe |
| 📦 ~100KB Output | Ultra-compact .taar files |

---

🛠 Installation

``bash
npm install locus-ar
`

---

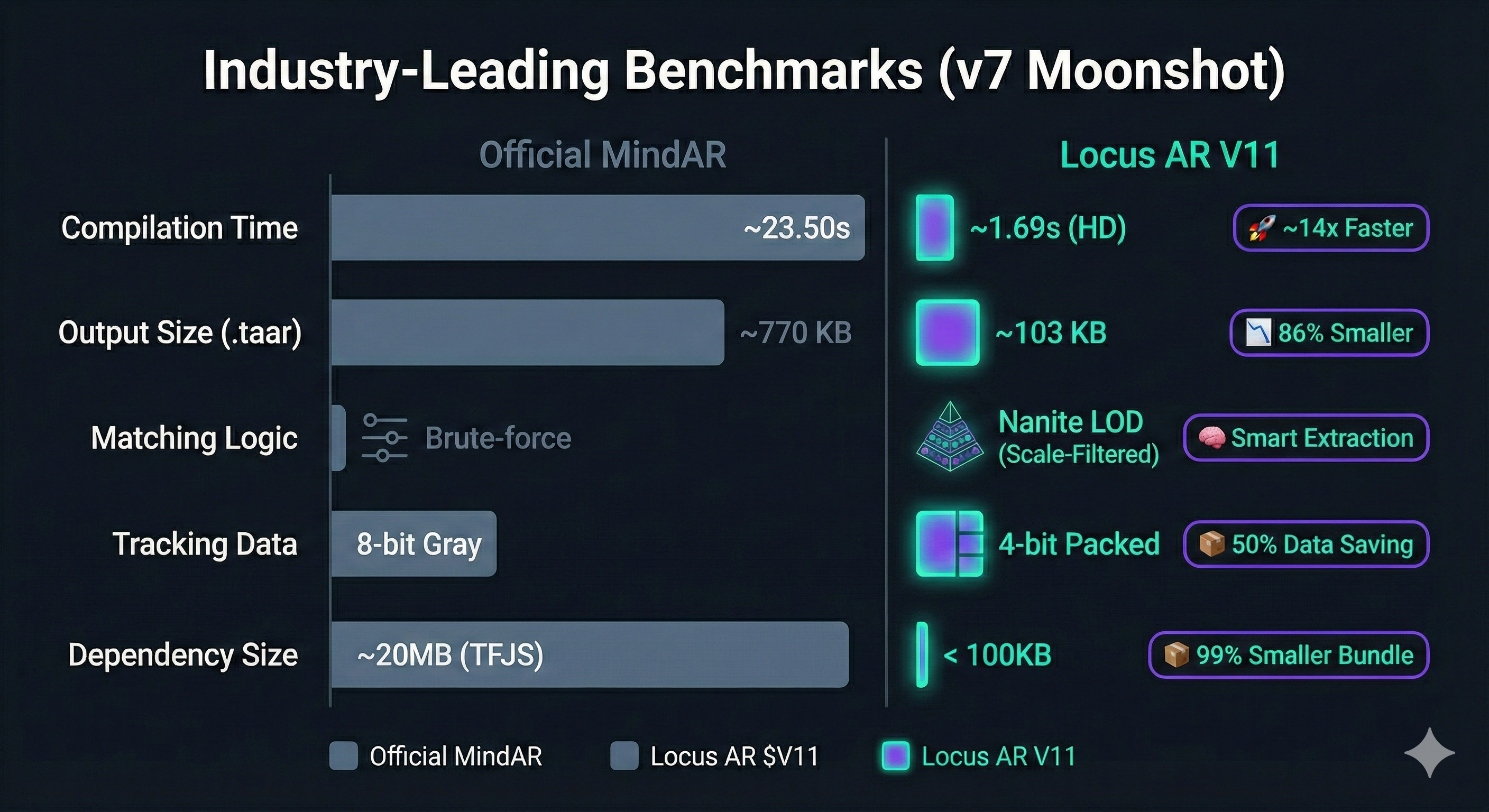

📊 Industry-Leading Benchmarks (v7 Moonshot)




| Metric | Official MindAR | Locus AR V11 | Improvement |
| :--- | :--- | :--- | :--- |
| Compilation Time | ~23.50s | ~1.69s (HD) | 🚀 ~14x Faster |
| Output Size (.taar) | ~770 KB | ~103 KB | 📉 86% Smaller |
| Matching Logic | Brute-force | Nanite LOD (Scale-Filtered) | 🧠 Smart Extraction |
| Tracking Data | 8-bit Gray | 4-bit Packed | 📦 50% Data Saving |
| Dependency Size | ~20MB (TFJS) | < 100KB | 📦 99% Smaller Bundle |

---

🛡️ Robustness & Stability (Stress Tested)

The latest version has been rigorously tested with an adaptive stress test (robustness-check.js) covering diverse resolutions (VGA to FHD), rotations (X/Y/Z), and scales.

| Metric | Result | Description |
| :--- | :--- | :--- |
| Pass Rate | 96.8% | High success rate across resolutions (209/216). |
| Drift Tolerance | < 2% | Validated via sub-pixel coordinate system restoration. |
| Tracking Precision | Double-Precision Fix | Corrected coordinate scaling for all image octaves. |
| Detection Time | < 10ms | Ultra-fast initial detection on standard CPU. |

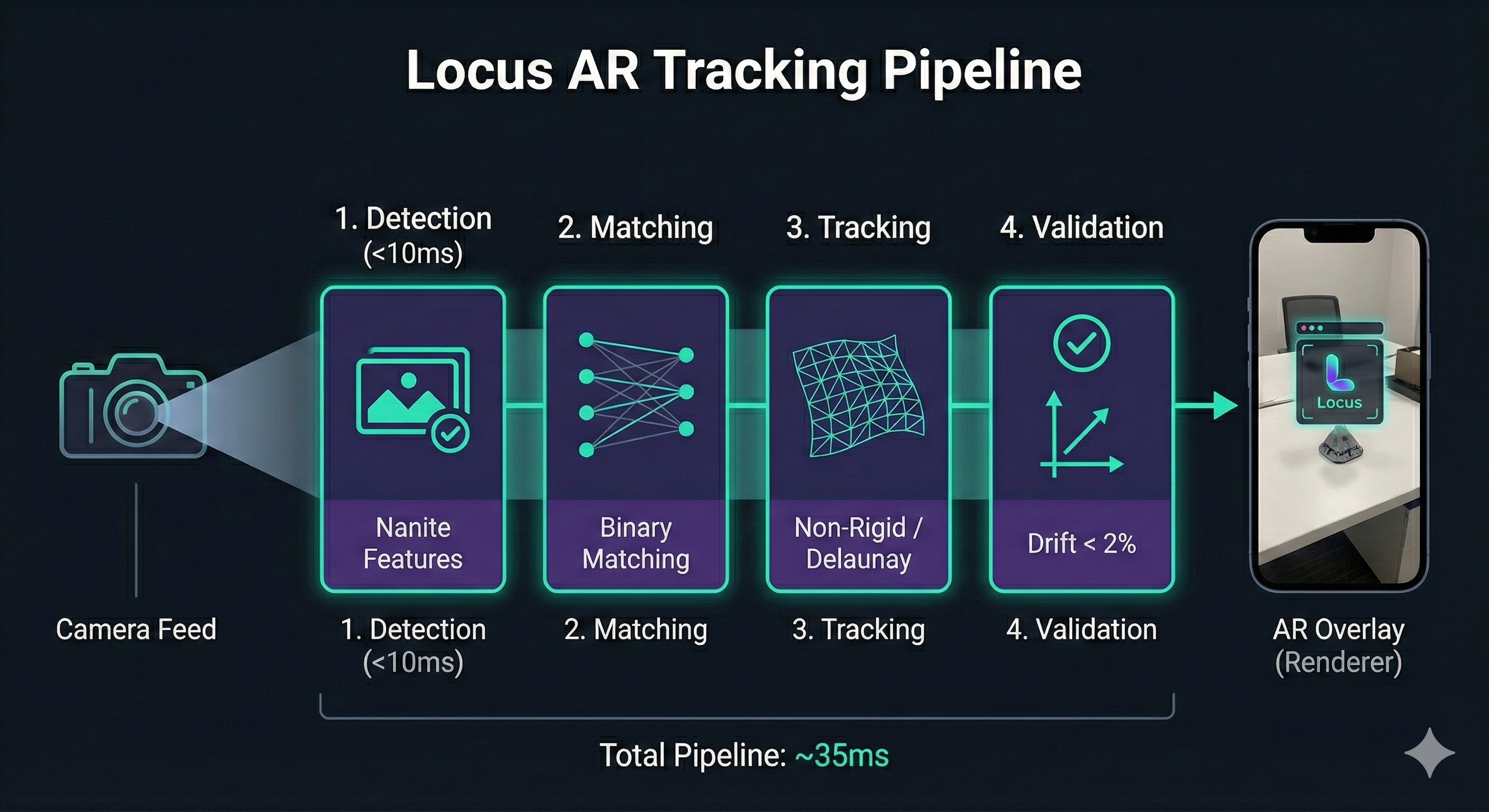

| Total Pipeline | ~35ms | Complete loop (Detect + Match + Track + Validate). |

---

🖼️ Compiler Usage (Automatic / JIT)

The new Locus AR engine handles compilation automatically in the browser (Just-In-Time). You likely don't need to use the offline compiler manually anymore.

Simply pass your image URL to the tracker, and it will compile it on the fly:

`typescript
// No compilation step needed!
const tracker = await startTracking({
targetSrc: './my-image.jpg' // Using a JPG/PNG directly
});
`

However, if you still want to pre-compile for faster startup on low-end devices:

`javascript
import { OfflineCompiler } from 'locus-ar';
// ... same compiler code as before ...
`

$3

If you already have a pre-compiled .taar file (generated by the offline compiler or provided by another developer), you can skip the JIT compilation entirely by passing it directly to the tracker:

`typescript
// Using a pre-compiled .taar file (skips JIT compilation)
const tracker = await startTracking({
targetSrc: './my-precompiled-target.taar' // Direct .taar file
});
`

Benefits of using pre-compiled .taar files:
- ⚡ Instant startup: No compilation delay on first load.
- 📱 Better for low-end devices: Avoids CPU-intensive compilation.
- 🔄 Consistent results: Same binary across all deployments.

When to use JIT vs Pre-compiled:
| Use Case | Recommended Approach |
| :--- | :--- |
| Development / Prototyping | JIT (just use .jpg/.png) |
| Production / Low-end devices | Pre-compiled .taar |
| Dynamic user-uploaded images | JIT |
| Static marketing campaigns | Pre-compiled .taar |

---

🎥 Runtime Usage (AR Tracking)




$3

The easiest way to add AR to your React application with automatic positioning via homography:

`tsx
import { Locus, LocusTransform } from '@srsergio/locus-ar/client';

export const MyARScene = () => (

{(detections) => (
detections.map(det => (

{/ This content will float over the physical object perfectly aligned /}




))
)}

);
`

$3

For advanced users who need to integrate the logic into their own systems:

`tsx
import { useLocus } from '@srsergio/locus-ar/client';

const MyCustomAR = () => {
const { state, detections, start } = useLocus([{ image: "target.png" }]);

return (



);
};
`

$3

For vanilla JS or custom integrations:

`typescript
import { startTracking } from '@srsergio/locus-ar';

const tracker = await startTracking({
targetSrc: './assets/target.jpg',
container: document.getElementById('ar-container'),
overlay: document.getElementById('overlay-element'),

// 📸 Custom Camera Config
cameraConfig: {
facingMode: 'environment', // Use back camera
width: { ideal: 1920 }, // Request Full HD
height: { ideal: 1080 }
},

callbacks: {
onFound: () => console.log("Target Found!"),
onUpdate: (data) => {
console.log(Stability: ${data.avgStability});
}
}
});
`

$3

The overlay isn't limited to images or videos. You can use any HTML element (divs, buttons, canvas, etc.). The engine will apply the transformation matrix automatically to align it with the target.

`tsx
// Using an interactive HTML overlay in React
const InteractiveAR = () => {
const { containerRef, overlayRef, status } = useAR({
targetImageSrc: "map.jpg",
scale: 1.0
});

return (



);
};
`

#### TrackingUpdate Data Object
The onUpdate callback provides a rich data object:
- isTracking: Boolean status.
- avgReliability: (0-1) Confidence of the match.
- avgStability: (0-1) Movement smoothness.
- screenCoords: Array of {x, y, id} of tracked points.
- worldMatrix: 4x4 matrix for WebGL/Three.js integration.
- targetDimensions: [width, height] of the source target.

$3

We still provide wrappers for 3D engines if you need to render complex 3D models instead of DOM overlays.

#### Three.js Adapter
`javascript
import { TaarThree } from 'locus-ar';
// ... (standard Three.js integration)
`

---

🏗️ Protocol V11 (Nanite Virtualized Format)




Locus AR uses a proprietary Nanite-style Vision Codec that is significantly more efficient than standard AR formats.

- Virtualized Multi-Octave Features: Instead of storing redundant images for each scale, V11 stores a single high-res keyframe with features stratified across 6 octaves.
- Dynamic Scale Filtering: The tracking engine estimates the target's current scale and dynamically filters the matching search space, reducing Hamming distance ops by up to 90%.
- Non-Rigid Surface Tracking: Replaces the standard rigid homography with a dynamic Delaunay Mesh. This allows the tracker to follow the curvature of posters on cylinders, t-shirts, or slightly bent magazines.
- Mass-Spring Relaxation: The tracking mesh is optimized using physical relaxation, minimizing L2 distance between predicted and tracked points while maintaining topological rigidity.
- Fourier Positional Encoding: Maps 2D coordinates into a 16-dimensional frequency space. This creates a "Neural Consistency Check" that filters out noise and motion blur by checking for harmonic spatial agreement.
- 4-bit Packed Tracking Data: Image data used for optical flow is compressed to 4-bit depth.
- 64-bit LSH Fingerprinting: Feature descriptors are compressed to just 8 bytes using LSH.
- Binary Matching Engine: Uses hardware-accelerated population count (popcount) and XOR for near-instant point matching.
- Zero-Copy Restoration: Binary buffers are mapped directly to TypedArrays (Uint32 for descriptors, Float32 for tracking coordinates, Int8 for Fourier signatures).

---

🔍 Visual Search & Embeddings (NEW!) 🚀




Locus AR now includes a state-of-the-art Image Embedding system based on Hyperdimensional Computing (HDC). This allows you to convert any image into a tiny mathematical fingerprint (vector) for ultra-fast visual search, deduplication, and clustering.

$3


| Mode | Size | Speed | Recommendation |
| :--- | :--- | :--- | :--- |
| micro | 4 Bytes | 10M+ ops/s | Extreme IoT |
| compact | 16 Bytes | 44M+ ops/s | 🏆 Best for Mega-Databases |
| standard| 32 Bytes | 18M+ ops/s | Balanced AR |
| full | 128 Bytes| 7M+ ops/s | Maximum Precision |

$3

Create visual embeddings and compare them just like you do with Text LLMs:

`javascript
import { visualSearch } from 'locus-ar';

// 1. Get a Dense Vector (Array of numbers) - LLM Standard
const embedding = await visualSearch.compute('product.jpg');
const vector = embedding.toFloatArray(); // [1.0, 0.0, 1.0, ...]

// 2. Similarity Search (Self-contained)
const score = await visualSearch.compare('item1.jpg', 'item2.jpg');
console.log(Visual Match: ${score * 100}%);
`

$3


Use your favorite vector database (Pinecone, Milvus, Weaviate, or pgvector) with the standard array format:

`javascript
// Example: Storing in a standard Vector DB
await vectorDB.insert({
id: 'image_42',
vector: Array.from(embedding.toFloatArray()),
metadata: { name: 'Vintage Camera', category: 'Electronics' }
});

// Example: Searching in PostgreSQL (pgvector)
// SELECT * FROM items ORDER BY embedding <=> '[1,0,1,1...]' LIMIT 5;
``

---

---

📄 License & Credits

This project is licensed under the MIT License.

$3

- Small & Large Entities: You can use, modify, and distribute this software for FREE (including commercial use) without restrictions.
- Open Source: This is a standard OSI-approved license, making it ideal for integration into any project or organization.

---

💎 Why Locus?

Locus was built to be the most used AR library in its category. We don't just provide the technology; we provide the user experience. We've eliminated the parameters that often break AR on the web so that you can always offer a premium experience to your users.

Designed with ❤️ by the TapTapp team. The future of web AR is called Locus.

---
MIT © srsergiolazaro

Based on core research from the community, but completely re-written for high-performance binary processing and JS-only execution.
