An interactive Javascript Plotting Boilerplate

For plotting visual 2D data with Javascript on HTML canvas (in 2d-context) or SVG nodes.

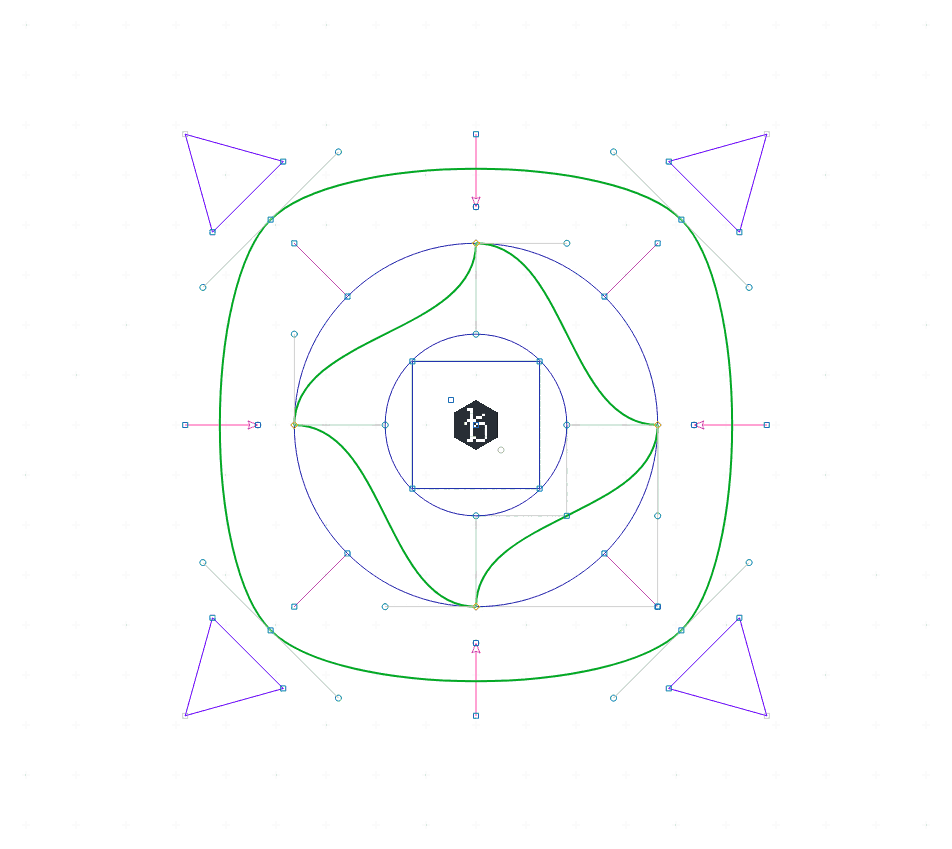

!logo

This is a simple collection of useful functions, methods, classes, algorithms and concepts which I
often use for the visualization of 2D geometries. Basic features are

- adding elements like
- vertices
(docs,
example)
- lines
(docs,
example)
- vectors docs,
example)
- triangles
(docs,
example)
- curves
(docs,
example)
- circles
(docs,
example)
- circle sectors
(docs,
example)
- polygons
(docs,
example)
- ellipses
(docs,
example)
- ellipse sectors
(docs,
example)
- images
(docs,
example)
- text
(docs,
example)
- configuration of the canvas behavior
- fullsize and auto-resizing
- enable/disable mouse, touch or keyboard interaction
- draw rasters
- default colors and darkmode
- mouse and touch interaction
- zoom
- pan
- drag and select elements
- keyboard interaction customizable

The compressed library has 159kb.
It once has been my aim to keep the base library less than 80kb – but the more powerful the lib gets
the more difficult this turned out.

Install the package via npm

``sh
# Installs the package
$ npm i plotboilerplate
`

The HTML file

For a full example see main-dist.html :

`html
Your browser does not support the canvas tag.
`

The element canvas will be used to draw on.

The javascript

`javascript
var pb = new PlotBoilerplate({
canvas: document.getElementById("my-canvas"),
fullSize: true
});
`

$3

Use SVG elements instead of canvas:

`html

`

And pass the SVG element:

`javascript
var pb = new PlotBoilerplate({
canvas: document.getElementById("my-svg"),
fullSize: true
});
`

Add elements to your canvas

`javascript
// Create two points:
// The origin is at the visual center by default.
var pointA = new Vertex(-100, -100);
var pointB = new Vertex(100, 100);
pb.add(new Line(pointA, pointB));

// When point A is moved by the user
// then move point B in the opposite direction
pointA.listeners.addDragListener(function (e) {
pointB.sub(e.params.dragAmount);
pb.redraw();
});

// and when point B is moved
// then move point A
pointB.listeners.addDragListener(function (e) {
pointA.sub(e.params.dragAmount);
pb.redraw();
});
`

$3

`typescript
// Usage with Typescript could look like this
import { PlotBoilerplate, Vertex, Line } from "plotboilerplate";

globalThis.addEventListener("load", () => {
const pointA: Vertex = new Vertex(100, -100);
const pointB: Vertex = new Vertex(-100, 100);
console.log(pointA, pointB);

const line: Line = new Line(pointA, pointB);

const pb: PlotBoilerplate = new PlotBoilerplate({
canvas: document.getElementById("my-canvas"),
fullSize: true
});

pb.add(line);
});
`

For a guide of how to Getting Started click here.

A full working demo repository about the Usage with Typescript is here.

$3

Basic Setup in a Codepen.io demo

$3

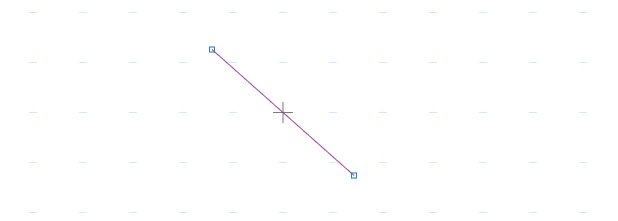

!Simple Demo

And the simple demo is here

#### API

See API Documentation for details.

Screenshot

!Current demo

See the demo

Examples and Demos

Examples and Demos

Initialization parameters

#### Example

`javascript
var pb = new PlotBoilerplate({
// HTMLCanvasElement | SVGElement | string
// Your canvas element in the DOM (required).
canvas: document.getElementById("my-canvas"),

// boolean
// If set to true the canvas will gain full window size.
fullSize: true,

// boolean
// If set to true the canvas will gain the size of its parent
// container.
// @overrides fullSize
fitToParent: true,

// float
// The initial zoom. Default is 1.0.
scaleX: 1.0,
scaleY: 1.0,

// float
// The initial offset. Default is 0.0. Note that autoAdjustOffset=true overrides these values.
offsetX: 0.0,
offsetY: 0.0,

// Specifies if the raster should be drawn.
drawGrid: true,

// If set to true the background grid will be drawn rastered.
rasterGrid: true,

// float
// The exponential limit for wrapping down the grid.
// (2.0 means: halve the grid each 2.0*n zoom step).
rasterAdjustFactor: 2.0,

// Draw a crosshair at (0,0).
drawOrigin: false,

// boolean
// When set to true then the origin of the XY plane will
// be re-adjusted automatically (see the params
// offsetAdjust{X,Y}Percent for more).
autoAdjustOffset: true,
// float
// The x- and y- fallback position for the origin after
// resizing the canvas.
offsetAdjustXPercent: 50,
offsetAdjustYPercent: 50,

// int
// The canvas size fallback if no automatic resizing
// is switched on.
defaultCanvasWidth: 1024,
defaultCanvasHeight: 768,

// float
// Two scaling factors (width and height) upon the canvas size.
// In combination with cssScale{X,Y} this can be used to obtain
// sub pixel resolutions for retina displays.
canvasWidthFactor: 1.0,
canvasHeightFactor: 1.0,

// float
// Visually resize the canvas using CSS transforms (scale).
cssScaleX: 1.0,
cssScaleY: 1.0,

// boolean
// If set to true only cssScaleX applies for both dimensions.
cssUniformScale: true,

// boolean
// When set to true (default) the canvas will try to use the display's pixel ratio.
autoDetectRetina: true,

// string
// A background color (CSS string) for the canvas.
backgroundColor: isDarkmode ? "#000000" : "#ffffff",

// boolean
// Switch auto-redrawing on resize on/off (some applications
// might want to prevent automatic redrawing to avoid data
// loss from the drae buffer).
redrawOnResize: true,

// boolean
// Indicates if Bézier curve handles should be drawn (used for
// editors, no required in pure visualizations).
drawBezierHandleLines: true,

// boolean
// Indicates if Bézier curve handle points should be drawn.
drawBezierHandlePoints: true,

// function
// A callback function that will be triggered just before the
// draw function clears the canvas (before anything else was drawn).
preClear: function () {
console.log("before clearing the canvas on redraw.");
},

// function
// A callback function that will be triggered just before the
// draw function starts.
preDraw: function (draw, fill) {
console.log("after clearing and before drawing.");
},

// function
// A callback function that will be triggered right after the
// drawing process finished.
postDraw: function (draw, fill) {
console.log("after drawing.");
},

// function
// A callback function that will be triggered after content changed.
onContentChanged: function (event) {
console.log("Event type (DRAWABLES_ADDED or DRAWABLES_REMOVED)", event.type);
console.log("Added drawables:", event.addedDrawables);
console.log("Removed drawables:", event.removedDrawables);
},

// boolean
// Indicates if the application should handle mouse events for you.

enableMouse: true,
// boolean
// Indicates if the application should handle touch events for you.
enableTouch: true,

// boolean
// Indicates if the application should handle key events for you.
enableKeys: true,

// boolean
// Indicates if the application should handle mouse wheelevents for you.
enableMouseWheel: true,

// boolean (default true)
// Use this to disable panning completely.
enablePan: true,

// boolean (default true)
// Use this to disable zooming completely.
enableZoom: true,

// Indicates if the SVG export should be enabled (default is true).
enableSVGExport: true,

// boolean
// Indicates if the application should use the experimental WebGL features.
enableGL: false
});
`

Events

The Vertex class has basic drag event support:

`javascript
var vert = new Vertex(100, 100);
vert.listeners.addDragListener(function (e) {
// e is of type Event.
// You are encouraged to use the values in the object e.params
console.log("vertex was dragged by: ", "x=" + e.params.dragAmount.x, "y=" + e.params.dragAmount.y);
});
`

$3

`javascript
{
// The canvas that fired the event.
element : [HTMLElement],

// The event name.
// Default: 'drag'
name : string,

// The current drag position.
pos : { x : number, y : number },

// A mouse button indicator (if mouse event).
// 0=left, 1=middle, 2=right
button : number,

// A flag indicating if event comes from left mouse button.
leftButton : boolean,

// A flag indicating if event comes from middle mouse button.
middleButton : boolean,

// A flag indicating if event comes from right mouse button.
rightButton : boolean,

// A mouse-down-position: position where the dragging
// started. This will not change during one drag process.
mouseDownPos : { x : number, y : number },

// The most recent drag position (position before
// current drag step).
draggedFrom : { x : number, y : number },

// True if this is a drag event (nothing else available the moment).
wasDragged : boolean,

// The x-y-amount of the current drag step.
// This is the difference between the recent drag step
// and the actual drag position.
dragAmount : { x : number, y : number }
}
`

Mouse, Keyboard and Touch interaction

- [SHIFT] + [Click] : Select/Deselect vertex
- [Y] + [Click]: Toggle Bézier auto-adjustment for clicked bézier path point
- [ALT or SPACE] + [Mousedown] + [Drag] : Pan the area
- [Mousewheel-up] : Zoom in
- [Mousewheel-down] : Zoom out
- Touch & move (1 finger): Move item
- Touch & move (2 fingers): Pan the area
- Touch & pinch: Zoom in/out

Custom keyboard events

`javascript
new KeyHandler({ trackAll: true })
.down("enter", function () {
console.log("ENTER was hit.");
})
.press("enter", function () {
console.log("ENTER was pressed.");
})
.up("enter", function () {
console.log("ENTER was released.");
})
.down("e", function () {
console.log("e was hit. shift is pressed?", keyHandler.isDown("shift"));
})
.up("spacebar", function () {
console.log("spacebar was released.");
});
`

For a list of all supported key codes see Full list of supported key codes.

Custom mouse event

`javascript
new MouseHandler(document.getElementById("mycanvas"))
.drag(function (e) {
console.log("Mouse dragged: " + JSON.stringify(e));
if (e.params.leftMouse);
else if (e.params.rightMouse);
})
.move(function (e) {
console.log("Mouse moved: " + JSON.stringify(e.params));
})
.up(function (e) {
console.log("Mouse up. Was dragged?", e.params.wasDragged);
})
.down(function (e) {
console.log("Mouse down.");
})
.click(function (e) {
console.log("Click.");
})
.wheel(function (e) {
console.log("Wheel. delta=" + e.deltaY);
});
``

Build the package

Compile and build howto

Browsers support

|
IE / Edge |
Firefox |
Chrome |
iOS Safari |
| ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| IE11 & Edge | latest | latest | latest |

$3

- dat.gui by dataarts
- Neolitec's Color.js class
- FileSaver.js
- AlloyFinger.js
- Ray Casting Algorithm by Aaron Digulla
- Hobby Curves in Javascript by Prof. Dr. Edmund Weitz
- hobby.pdf
- jsHobby
- Blake Bowen's Catmull-Rom demo
- mbostock for the great convex-polygon-incircle implementation
- and for circle-tangent-to-three-lines
- Circle Intersection in C++ by Robert King
- The 'Circles and spheres' article by Paul Bourke
- shamansir/draw_svg.js for manipulating SVG path data strings
- opsb's stackoverflow proposal for converting ellipses sectors to SVG arcs.
- contrast-color-algorithm by Martin Sojka's
- Peter James Lu and Paul Steinhardt for their work on Girih patterns
- Cronholm144 for the Girih texture
- Mapbox's Earcut polygon algorithm
- Rosetta-Code for the Sutherland-Hodgman convex polygon clipping algorithm
- Jos de Jong for the very useful math.js library
- Jack Franklin for the howto-module-tutorial
- Narasinham for the very useful vertex-on-ellipse equations
- Tim Čas for the wrapMax/wrapMinMax functions
- Luc Maisonobe for the Ellipse to cubic Bézier math
- Dr. Martin von Gagern for the equidistant points on ellipse math
- Torben Jansen for the SVG-Arc to elliptic-sector conversion
- 3daddict for the js-stl-parser inspiration
- jburkardt for the obj test files.
- @veltman for the awesome geometric skeletonization article
- girih-tiles-spatial.jpg from Lund University, Architecture, Spatial Experiments, 2016.
- Josh Frank's regular expression for parsing SVG path data.
- Rick Moore for the useful javascript-synthesizer howto
- marked Markdown compiler by Christopher Jeffrey.
- Interactive Visualization of Molecular Surface Dynamics for the illustration image which inspired the metaballs demo.
- Darel Rex Finley for the Polygon Inset Calculation article Inset A Polygon By A Fixed, Perpendicular Distance, With C Code Sample
- Fernando Cacciola for A Survey of Polygon Offseting Strategies
- Stephen Schmitt for solvin cubic Beziér intersections with line segments http://mysite.verizon.net/res148h4j/javascript/script_exact_cubic.html
- And _Particle in Cell Consulting LLC_ for refactoring Stephen Schmitt's solution: Computing Intersections Between a Cubic Bezier Curve and a Line
- Richard "RM" for the hints of how to calculate the bounding box of cubic Bézuer curves: Bezier Area
- Cuixiping for the helpful insights on cubic Bézier bounds at Stackoverflow
- Thanks to Ana Tudor for the Multi-Range-Slider tutorial: https://css-tricks.com/multi-thumb-sliders-particular-two-thumb-case/
- Thanks to Dean Taylor for the css linear gradient parser howto: https://stackoverflow.com/questions/20215440/parse-css-gradient-rule-with-javascript-regex
- Thanks to Stefan Gustavson (stegu@itn.liu.se) for the Perlin noise on example C code (https://github.com/MethanePowered/PerlinNoise). And for Peter Eastman (peastman@drizzle.stanford.edu) for Perlin noise optimizations.

Todos

What needs to be done

Known bugs

- SVG resizing does not work in Firefox (aspect ratio is always kept, even if clip box changes). Please use PNGs until this is fixed.
- The BBTree.iterator() fails if the tree is empty! (Demos)
- The minifid BBTree and BBTreeCollection files do not export anything. The un-minified does. Why that?
- Arcs and ellipses break when non-uniform scaling (scalex!=scaley) is applied. Convert them to Bézier curves before drawing.
- Currently no more known. Please report bugs.

Oh look, a cat
ᓚᘏᗢ
