Strict Content MathML Editor

This editor helps to create Strict Content MathML 3.0 expressions.

Demo

Visit https://ifte-eda.github.io/strict-content-mathml-editor/ for a simple demo page that displays the generated Strict Content MathML code.

Screenshot

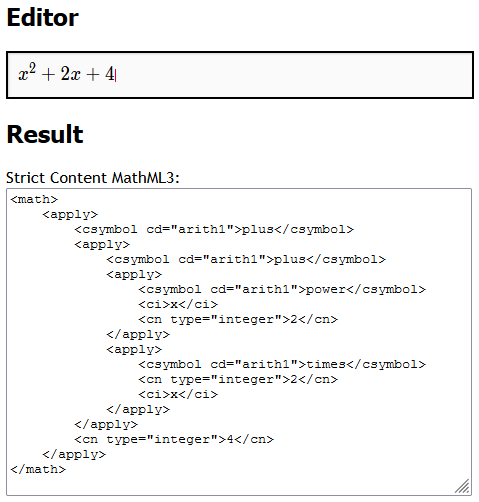

!Screenshot of the Strict Content MathML Editor

Features

- Support of custom symbols, e.g. type Umax and get the single symbol U_max instead of the product Umax in the formula editor
- Support of SI prefixes and units
- Support of piecewise-defined expressions
- Automatic detection of integers, real numbers and rational numbers

Installation

npm install strict-content-mathml-editor

Usage

The editor component is provided by Guppy which is licensed under the MIT License.

This package provides the function guppy_xml_to_mathml to convert Guppy's internal XML format to Strict Content MathML.

For a simple demo web page with the formula editor and a text field displaying the resulting MathML code, the following files index.html and mathml-editor.js are required.

$3

``html

Editor

Result

Strict Content MathML3:

`

$3

`javascript
window.onload = function(){
// ID of the editor's div
var editor_id = "guppy1";
// output textarea
var output_mathml = document.getElementById("output_mathml");

// update output textarea when editor content changes
var update_output = function(e) {
try {
var engine = e.target.engine;
var doc = engine.doc;
var content = (new XMLSerializer()).serializeToString(guppy_xml_to_mathml(engine, doc));
content = vkbeautify.xml(content, 4);
output_mathml.value = content;
}
catch(e) {
output_mathml.value = "Failed to parse input: " + e.message;
}
}

// tab completion after backslash prints all candidates in the output textarea
var completion = function(e) {
output_mathml.value = e.candidates.join(", ");
}

Guppy.init({
"osk":new GuppyOSK(),
"path":"node_modules/guppy-js",
"symbols":["node_modules/guppy-js/sym/symbols.json","node_modules/strict-content-mathml-editor/strict-content-mathml-symbols.json"],
"events": {
"ready": update_output,
"change": update_output,
"completion": completion
},
"settings":{
"empty_content": "{\\text{Click to start typing math!}}"
},
});

var g1 = new Guppy(editor_id);
}
`

Custom Symbols

You can define custom mathematical/physical symbols for later use in the formula.

Example: By defining a custom symbol, you can type Umax in the formula editor and get the single symbol Umax instead of the product Umax. In this case, the resulting MathML is Umax.

`javascript
Guppy.add_global_symbol("Umax", {
"output": {
"latex": "U_\\text{max}",
"asciimath": "Umax"
},
"attrs": {
"group": "custom",
"type": "Umax"
}
});
``

Supported Content Dictionaries

In Strict Content MathML3, all mathematical concepts are grouped in content dictionaries. Currently, this formula editor supports the following content dictionaries and concepts:

$3

- abs
- divide
- minus
- plus
- power
- product
- root
- sum
- times
- unary_minus

$3

- defint
- diff
- int

$3

- evaluate

$3

- factorial

$3

- matrix
- matrixrow
- vector

$3

- and
- false
- nand
- nor
- not
- or
- true
- xnor
- xor

$3

- Euclidean_norm

$3

- infinity

$3

- piece
- piecewise
- otherwise

$3

- assignment
- block
- call_arguments
- def_arguments
- for
- global_var
- if
- function_block
- function_call
- function_definition
- local_var
- procedure_block
- procedure_call
- procedure_definition
- return
- while

$3

- eq
- lt
- gt
- neq
- leq
- geq

$3

- ceiling
- floor

$3

- arccos
- arcsin
- arctan
- cos
- cosh
- cot
- csc
- ln
- log
- sec
- sin
- sinh
- tan
- tanh

$3

- yocto
- zepto
- atto
- femto
- pico
- nano
- micro
- milli
- centi
- deci
- deka
- hecto
- kilo
- mega
- giga
- tera
- peta
- exa
- zetta
- yotta

$3

- calendar_month
- calendar_year

$3

- ampere
- candela
- kelvin
- kilogram
- metre
- mole
- second

$3

- becquerel
- coulomb
- degree celsius
- farad
- gram
- gray
- henry
- hertz
- joule
- katal
- lumen
- lux
- newton
- ohm
- pascal
- radian
- siemens
- sievert
- steradian
- tesla
- volt
- watt
- weber

$3

- bel
- day
- hour
- litre
- minute
- neper
- tonne
- degree of arc
- minute of arc
- second of arc
